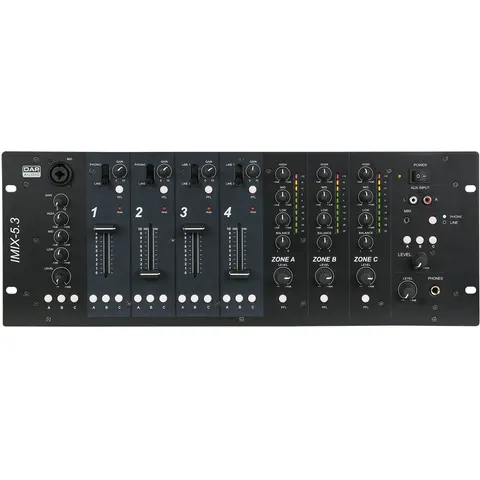

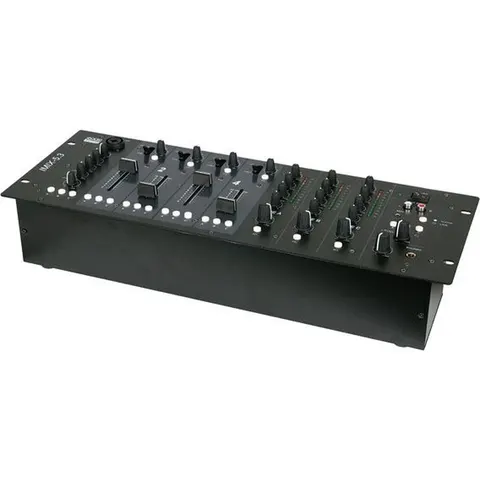

DAP IMIX-5.3

<p>The IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.</p> <h3>Specifications</h3> <ul> <li>Input channels: 1 x Microphone, combo XLR/Jack</li> <li>7 x Line, RCA</li> <li>2 x Phono, RCA</li> <li>1 x Phone, 3,5mm jack</li> <li>Output channels: 3 x Master (Balanced), XLR/RCA</li> <li>1 x Headphones, 6.3mm Jack</li> <li>Master EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB</li> <li>Mic EQ: 100Hz, 1KHz, 10KHz, -12dB / +12dB</li> <li>Frequency response: 20Hz – 20Khz</li> <li>T.H.D.: &lt;0.05%</li> <li>Dimensions: 481 x 176 x 89 mm (LxHxD)</li> <li>Powersupply: 230V AC, 50Hz</li> <li>Powerconsumption: 15Watt</li> <li>Weight: 3.4 Kg</li> </ul>
