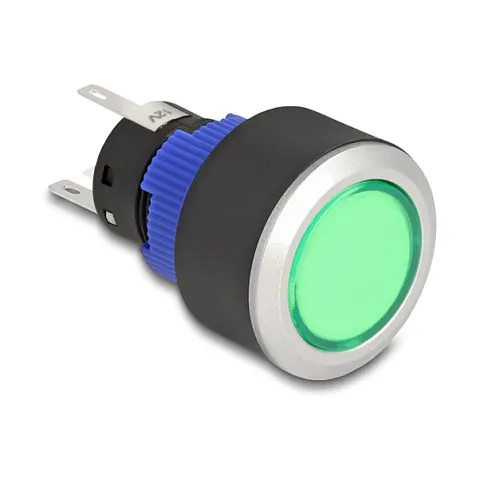

Delock Push Button protruding for Installation 22 mm 5 x solder connection actuator flat plastic LED green

<strong>Description</strong> <p>This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.<br /><br />A so called button, or push button, returns to its initial position after being pressed.<br /><br />The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.</p> <strong>Specification</strong> <p>• Connectors: 5 x solder connection<br />• Switch type: 1NO + 1 NC<br />• Switching voltage: AC 230 V~ / 3 A<br />• Number of contacts: 5<br />• Number of open contact: 3<br />• Number of LED: 2<br />• Function: momentary<br />• Actuator: flat<br />• Operating temperature: -25 °C ~ 55 °C<br />• Mounting hole diameter: ca. 16 mm<br />• Mounting depth: ca. 27 mm<br />• Thread size: M16<br />• LED lighting: green<br />• LED voltage: 12 V<br />• Material: plastic<br />• Mechanical life: 1,000,000 cycles<br />• Electrical service life: 100,000 cycles<br />• Protection class: IP60<br />• Dimensions (LxD): ca. 41 x 25 mm</p> <strong>Package content</strong> <p>• Push-button</p>
