Gigabyte

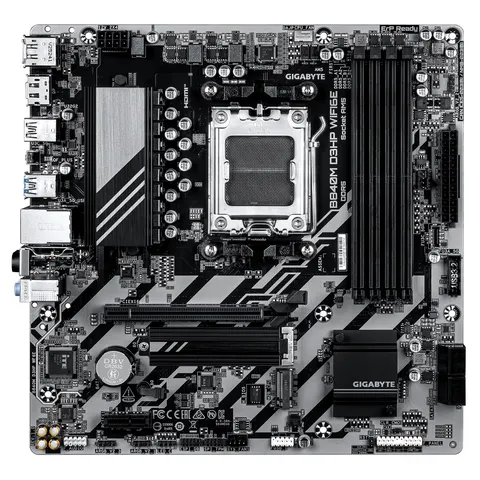

GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX
- Prijs € 137,50 bij 1 winkel
- X3D Turbo Mode: Unleash new era gaming performance
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 8200MT/s
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
€ 137,50
bol Gratis verzending
Prijsgeschiedenis wordt opgebouwd
We zijn net begonnen met het vastleggen van deze prijs. Over twee weken laten we hier zien of de huidige prijs goed is.
Advertentie: Hoe we geld verdienen
Aanbieding
Gesorteerd op totaalprijs inclusief verzendkosten-
€ 137,50Naar de winkel: bol
Prijzen inclusief btw, laatst gecontroleerd 22 oktober om 03:28. Prijzen kunnen sindsdien zijn gewijzigd. Advertentie: sommige winkels betalen Pricuro een commissie als je via een link koopt (affiliatelinks). Aanbiedingen staan uitsluitend op volgorde van totaalprijs; tweedehands en refurbished aanbiedingen komen als laatste.
Prijsgeschiedenis
- Nu
- € 137,50
- Laagste
- € 137,50
- Gemiddeld
- € 137,50
- Hoogste
- € 137,50
Productgegevens
| Merk | Gigabyte |
|---|---|
| Categorie | Computeronderdelen |
| Barcode (EAN) | 4719331879662 |
| Winkels vergeleken | 1 |
| Totaal | Laagste totaalprijs inclusief verzendkosten: € 137,50 |
| Op Pricuro sinds | 3 oktober 2026 |
Processor
4
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
Memory
10
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5600,5800 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
Storage controllers
6
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10, 5 |
Graphics
5
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
Internal I/O
14
| USB 2.0 connectors | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
Rear panel I/O ports
13
| USB 2.0 ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
Network
9
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | MediaTek MT7902 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
11
| Motherboard chipset | AMD B840 |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
7
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
BIOS
6
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
2
| Country of origin | China |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
6
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
4
| Package width | 270 mm |
|---|---|
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.18 kg |
Weight & dimensions
3
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
4
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
Other features
1
| Weight | 1.09 kg |
|---|
Technical details
1
| Warranty period | 3 year(s) |
|---|
Gegevens van de fabrikant: Open Icecat
Productbeschrijving
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Veelgestelde vragen
Waar is GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX het goedkoopst?
Op dit moment bij bol voor € 137,50. We vergelijken één aanbieding.
Wat kost GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX?
Op dit moment € 137,50.
Is dit een goed moment om GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX te kopen?
Prijsgeschiedenis wordt opgebouwd. We zijn net begonnen met het vastleggen van deze prijs. Over twee weken laten we hier zien of de huidige prijs goed is.
Is GIGABYTE B840M D3HP WIFI6E AMD B840 Socket AM5 micro ATX op voorraad?
Ja, één winkel heeft het product op voorraad.
