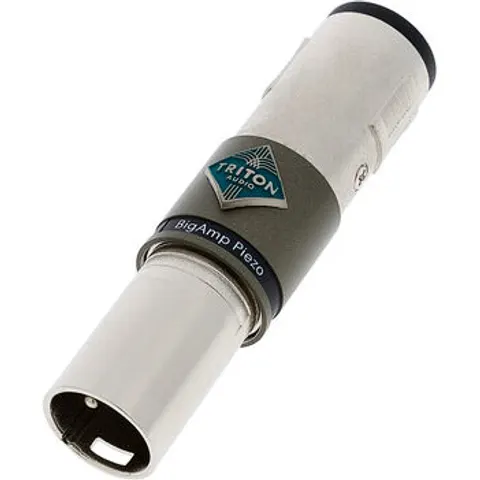

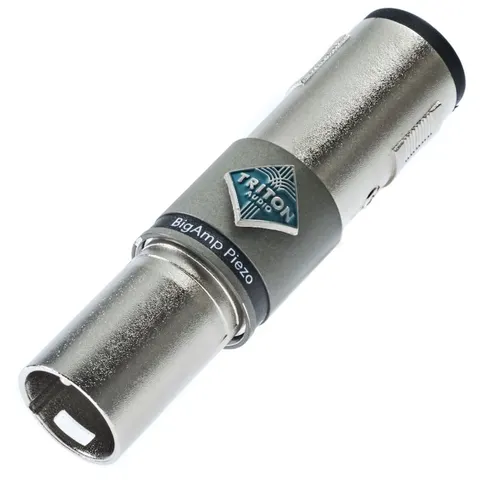

Tritonaudio - BigAmp Piezo

<p>BigAmp Piezo is a small sized high-quality FET instrument preamp which performs equally well<br />on stage as it does in a studio environment. It is specially designed for piezo transducers and has<br />a 7.5 mega ohm input impedance, which enables the transducer to deliver its full potential.<br />Signal amplification is low (3dB) to allow for the highest possible headroom. Because of its small<br />size BigAmp Piezo can be connected as close to the transducer as possible which keeps cable<br />capacitance to a minimum. An extra benefit might be BigAmps small size, making it super<br />portable.<br /><br /><strong>Operation</strong><br />Stick your BigAmp Piezo on an XLR cable, plug in your electric guitar, bass (or any other<br />instrument with a jack output) and switch on phantom power. BigAmp Piezo goes directly into a<br />balanced input of a preamp or interface.<br />To achieve the best sonic result, it is advised to use a short TS/Jack cable between BigAmp and<br />your instrument.<br /><br /><strong>Circuit topology</strong><br />BigAmp Piezo utilizes a low noise FET amplifier circuit, followed by a low impedance, balanced<br />buffer which reveals every detail with pinpoint accuracy and offers high-end sound quality.<br /><br /><strong>Features</strong><br />• Low noise Class A FET amplifier<br />• 3dB amplification<br />• Female 1/4” TS jack input<br />• Balanced XLR output<br />• Lots of headroom<br />• Frequency response 10Hz-100kHz (+/- 1dB)<br />• Z-in 7.5 mΩ<br />• Circuit is powered with 48V phantom power</p>
