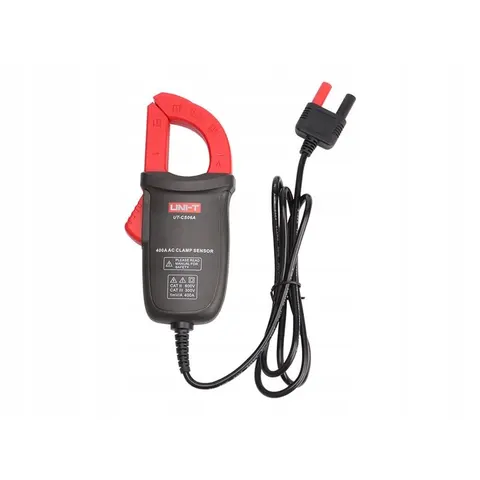

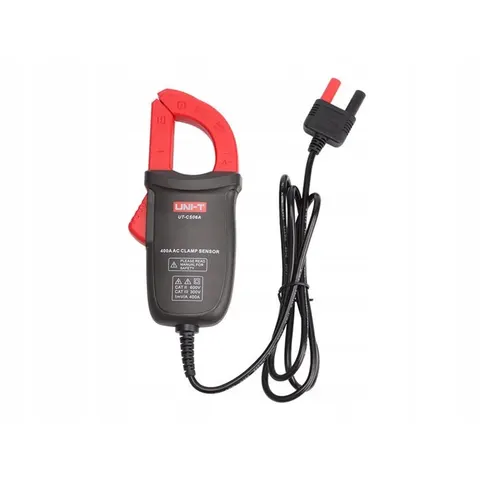

UNI-T UT-CS06A flexibele stroomtang

UT-CS06A 400A AC Current Clamp SensorUT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger.It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters.Features of UT-CS06A 400A AC Current Clamp SensorCertificates: CE, UKCA● Compact design, easy to operation● 400A AC current measurement● AC A Frequency: 50 Hz to 400 Hz● Output ratio: 1mV/A● Clamp Jaw size: 28mm● Suitable for most UNI-T multimeters● Drop protection: 1m● Overvoltage category: CAT Ⅲ 300V/CATII 600V Specifications of UT-CS06A 400A AC Current Clamp SensorTechnical SpecificationsUT-CS06ADimension158*65*33mmACA Current1-400AAccuracy±2.5%±0.5A@50-60Hz±2.8%±0.5A@60-400Hz Jaw opening28mm Output ratio1mV/AWire length1.1m True RMSDepends on the MultimeterResponse timeDepends on the MultimeterFrequency50 Hz~400 Hz Waveform displayAdaptable oscilloscopeAccuracyDepends on the MultimeterPower supplyNo need batteryDrop test1m Overvoltage categoryCAT III 300V, CAT II 600V CertificatesCE, UKCA
