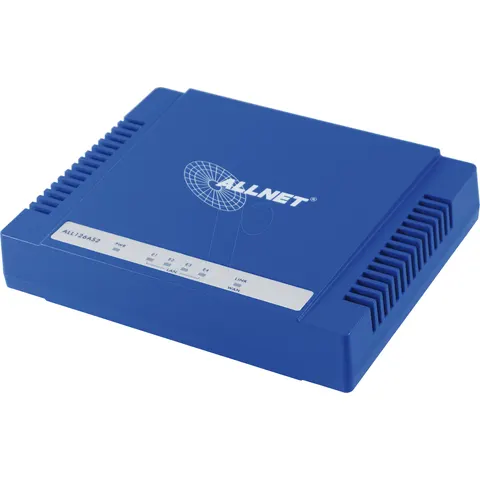

ALLNET ALL126AS3 - Allnet ALL126AS2 VDSL2 slave modem

"ALL126AS2 Allnet VDSL2 100 Mbit slave modem VDSL2 slave modem for dedicated lines via 2-wire connections up to a length of 2500 meters and a bandwidth of 100 MBit/s (length-dependent) Also works as an access modem on the T-Home VDSL connection from Deutsche Telekom Dedicated lines with a length of up to five kilometres can be achieved using the ALL126AM2 VDSL modem master in conjunction with the ALL126AS VDSL2 slave modem using a simple 2-wire copper cable. In the case of short distances, bandwidths of up to 100 MBit/s are possible. At the same time, analogue telephones can be connected and operated on the same line. Existing telephone wiring can also be used for data services with high performance. Designed specifically for hotels and hospitals, this technology offers the optimum solution for providing high-performance network applications cost effectively. Modem in accordance with the VDSL2 standard for high data throughput Built-in 4-port Ethernet 10/100 Mbps switch Two RJ11 sockets for a telephone/line connection Integrated DSL splitter and overvoltage protection Versatile, configurable VDSL bandwidth profiles Automatic speed setting for VDSL 2-port Configuration via web browser and/or RS232C console port Use only as a modem, the router must be connected externally, if desired Energy-efficient, low power consumption (only approx. 6.7 W) Future-proof VDSL technology from Infineon up to 100 Mbps/symm. Diagnostic display for the connection quality Can be used for a point-to-point connection or provider connection Network connection via twisted 2-wire telephone cable Parallel connection for analogue telephony or UK0 (ISDN) on the same line possible Wall mount bracket "
