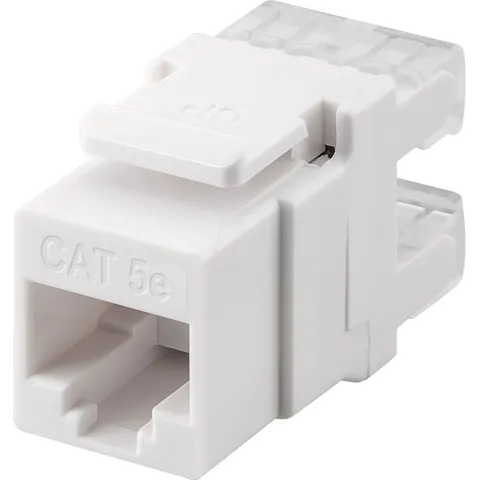

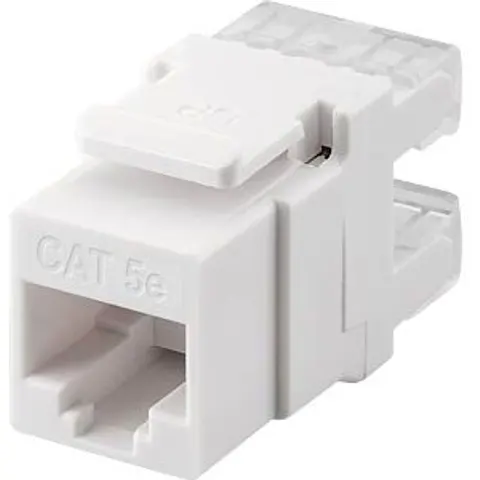

GOOBAY 95738 - Keystone module, Cat.5e UTP, RJ45 jack / LSA

" Keystone module Cat.5e UTP 1x RJ45 socket with terminal strip for tool-free LSA mounting With the Keystone system there are no limits to the installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 sockets (Cat.5, Cat.6, Cat.6A), loudspeaker connectors (cinch sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI sockets. The individual Keystone modules are universally applicable and interchangeable. Technical data : Keystone module RJ45 socket with snap-in system For installation in Keystone patch panels with up to 24 ports, network sockets and enclosures Network connector is 20.0 mm wide Specification Cat.5e with max. bandwidth of 100 MHz Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at Field-terminable RJ45 socket for CAT-5 cable AWG 24-26 Terminal strip for tool-free LSA mounting RJ45 connections are TIA 568A/B colour-coded Used, for example, in laboratories and workshops, in home entertainment and network installations RJ45 panel jack with robust plastic housing (PC) for optimal transmission of electrical or optical signals Cat.5e socket with 3µ gold-plated contacts for ideal transmission speed Inner material is flame-retardant ABS UL94V-0 "
