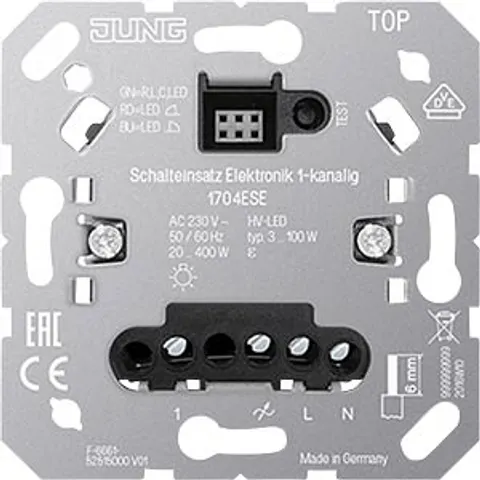

Jung Electronic Switch (Complete) - 1704ESE

" Switch panel electronics, single channel with extension input Intended use Operated using the appropriate attachment Mounting in an appliance socket with dimensions according to DIN 49073 Operation with neutral conductor: For switching light bulbs, HV halogen bulbs, electronic or inductive transformers with halogen or LED bulbs, switchable or dimmable HV LED or compact fluorescent bulbs Operation without neutral conductor: For switching light bulbs, HV halogen bulbs, electronic or inductive transformers with halogen or LED bulbs, dimmable HV LED or compact fluorescent bulbs Product features Switch on by means of light-saving soft start It is possible to connect extensions. Electronic short-circuit protection with permanent shutdown after no later than seven seconds Electronic overtemperature protection Test mode to test the function Operation with neutral conductor: The device is supplied via phase conductors and neutral conductors, meaning there is no leading edge or trailing edge Operation without neutral conductor: The device is supplied by the external conductor and the connected load and therefore operates in the leading edge or trailing edge principle Automatic or manual setting of the operating mode suitable for the load LED display of the set operating mode "
