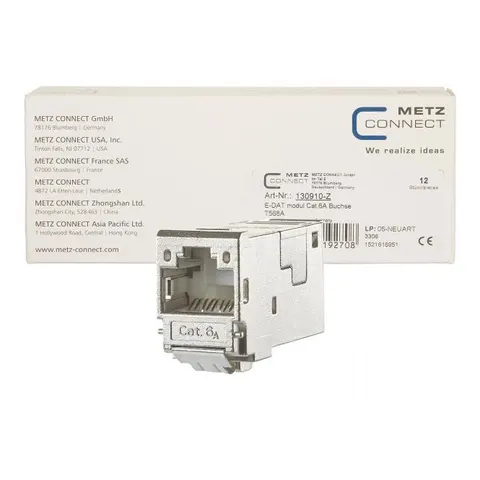

METZ CONNECT BTR 130910-Z - E-DAT modul Cat.6A 8(8) jack, T568A

" modular termination unit Cat.6A, RJ45 component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 tested: Link up to 500 MHz for 10 GBit Ethernet (IEEE 802.3an) suitable for Power over Ethernet (PoE, PoE plus and UPoE) easy to install connection of 2 to 4 pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC) marking of conductor assignment to T568A or T568B easy and fast insertion of wire pairs in E-DAT modul stuffer cap module housing made of refined zinc die-casting mounting without special tools strain relief with cable tie at the module dust cover amounting option mounting version: Modul cable feed 180° "
