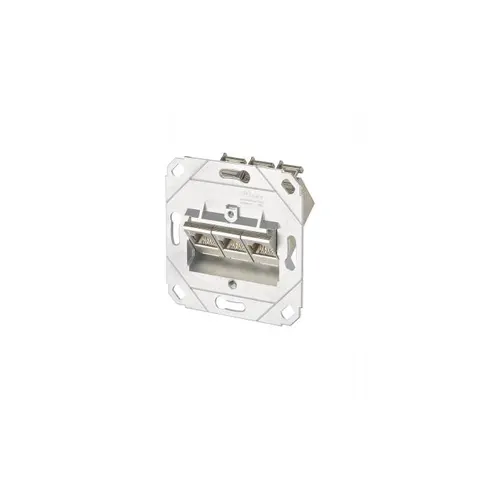

METZ CONNECT BTR 1309131200-E - CAT.6A module 3 port UP

" E-DAT module 3 port UP0 Cat.6A Channel connection unit with E-DAT module Cat.6A component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified Compliance with class EA according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 Tested: Link up to 500 MHz Suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT Easy to install connection of 2- to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire copper wire AWG 26/7 - 22/7 to BTR 8-way IDC cutting terminals Identification of the wire assignment T568A or T568B Mating direction of the module 45° tilted down Tongue relief with cable tie on the module Compatible with design centerpieces of switch programs (Attention 3 port centerpieces currently only available from the company JUNG) Not suitable for mounting in standard flush-mounted and cavity wall cups! Variants: 1 port, 2 port, 3 port "
