RASPBERRY PI A+ - Raspberry Pi A+, 512MB, USB, HDMI, 40pin GPIO

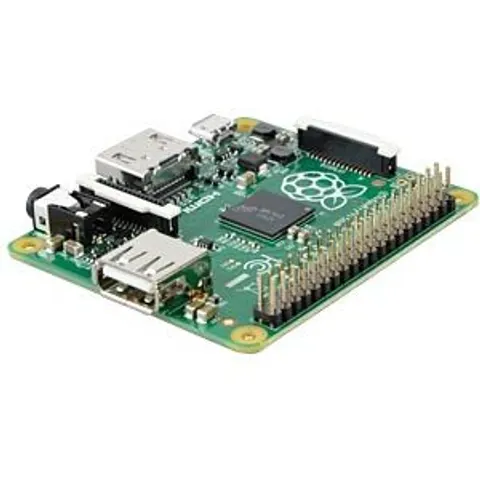

Raspberry Pi Model A+ Computer Board The Raspberry Pi Model A+ is a credit-card-sized computer board that is ready for use as soon as a keyboard, mouse, display, power supply, and a microSD card with the operating system installed are connected. It is an ARM-based miniature PC capable of running many of the applications that typically require a desktop PC, such as spreadsheets, word processing, and games. It also plays HD videos. The Raspberry Pi Model A+ is an open-source product designed to be supported by online user forums. The new Raspberry Pi A+ is the successor to the Raspberry Pi A and features the following improvements: • More I/O. A new 40-pin I/O header replaces the 26-pin I/O header. The first 26 pins are assigned identically to the Pi A, B, or B+, ensuring compatibility with existing accessories.• MicroSD card slot replaces standard SD card • Switching regulator instead of a linear regulator. • Better audio quality • The RCA composite video (FBAS) connector has been removed and replaced by the 3.5 mm audio jack • The board is approximately 2 cm shorter Additional features: • Broadcom BCM2835 700 MHz ARM1176JZFS processor with FPU and VideoCore IV, dual-core, 128 KB L2 cache, 250 MHz • GPU supports OpenGL ES 2.0, OpenVG with hardware acceleration, and 1080p30 H.264 High Profile decoding • GPU delivers 1 GPixel/s, 1.5 GTexel/s, or 24 GFLOPs with texture filtering and DMA infrastructure • 512 MB RAM • Boots from an SD card running a version of the Linux operating system (not included) • HDMI video port • 1x USB 2.0 port • Power supply via microUSB port • 3.5 mm audio output jack • Pin header for GPIO and serial buses • Pin header dimensions for JTAG connector • Connector for Raspberry Pi HD video camera • 2 status LEDs (Power, SD card access) • Power consumption: 0.5 to 1.2 W • Dimensions (LxWxH): 65 mm x 56 x 12 mm
