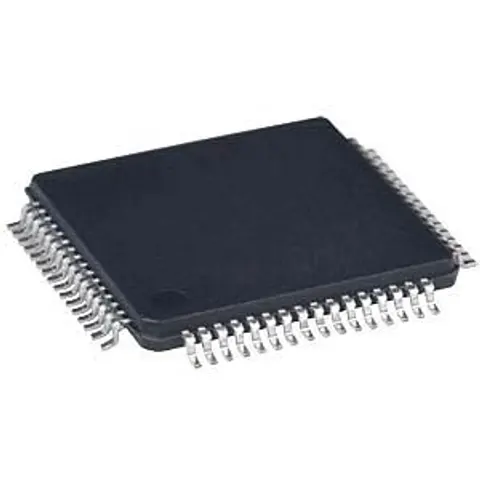

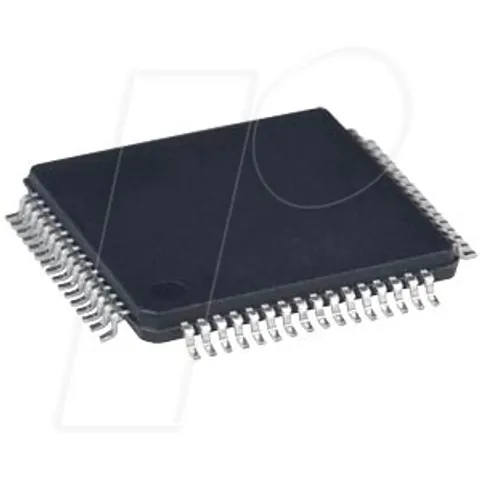

STMICROELECTRONICS STM32F107RBT6 - Microcontroller, Cortex M3, 72MHz,128KB Flash,64KB RAM,LQFP-64

Mainstream connectivity line, Arm Cortex-M3 MCU with 128 Kbyte flash memory, 72 MHz CPU, Ethernet MAC, CAN and USB 2.0 OTG The STM32F105xx and STM32F107xx connectivity family includes the powerful ARM® Cortex®-M3 32-bit RISC core operating at 72 MHz, embedded high-speed memory (Flash memory up to 256 Kbytes and SRAM up to 64 Kbytes) and an extensive range of advanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, four 16-bit general purpose timers plus a PWM timer, as well as standard and extended communication interfaces: up to two I2Cs, three SPIs, two I2Ss, five USARTs, one USB-OTG FS and two CANs. Ethernet is only available on the STM32F107xx. The STM32F105xx and STM32F107xx connectivity line family operates in the temperature range from -40 to +105 °C with a supply voltage of 2.0 to 3.6 V. A comprehensive range of power-saving modes enables the development of applications with low power consumption. The STM32F105xx and STM32F107xx connectivity family offers devices in three different package types: from 64 pins to 100 pins. Different peripherals are included depending on the selected module. The following description provides an overview of the entire range of peripherals offered in this family. These features make the STM32F105xx and STM32F107xx Connectivity Line family of microcontrollers suitable for a wide range of applications, such as motor drives and application control, medical and handheld devices, industrial applications, PLCs, inverters, printers and scanners, alarm systems, video intercoms, HVAC and home audio devices.
