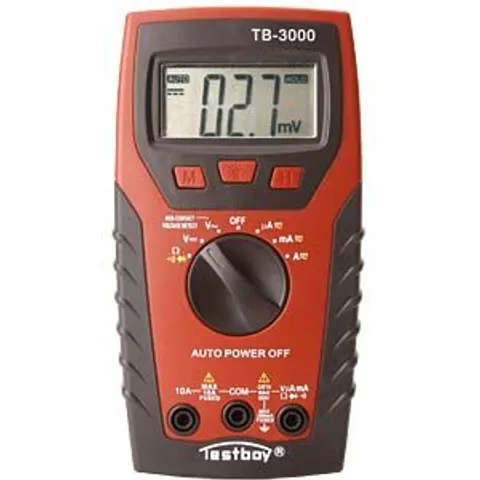

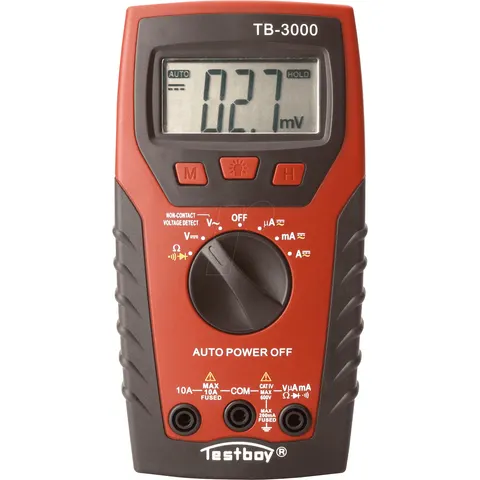

TESTBOY 3000 - Digital multimeter with voltage sensor and LED lamp

Modern design, the latest technology as well as an extended function area, leak-proof ABS enclosure and simple handling enables universal use in industry and trades, even under the harshest conditions. The integrated LED torch and the built-in non-contact voltage sensor set the Testboy 3000 apart and increase the safety of the user. • IEC/EN 61010-1 (DIN VDE 0411) Technical data DC voltage: 200 mV ±0.5%, +3 digit 2, 20, 200, 600 V ±0.8%, +5 digit AC voltage: 2, 20 V ±1.5%, +5 digit 200, 600 V ±1.5%, +5 digit DC current: 200 µA, 2000 µA ±1.0%, +3 digit 10 A ±1.2%, +5 digit AC current: 200 µA, 2000 µA ±1.3%, +5 digit 10 A ±1.5%, +8 digit Resistance: 200 ohms ±1.0%, +5 digit 2 kOhm, 20 kOhm, 200 kOhm ±1.0%, +5 digit 2 MOhm ±1.0%, +5 digit 20 MOhm ±1.8% +5 digit Diode test: Test current 0.6 mA/typical open circuit voltage 1.5 V Continuity test: Beep for resistance Non-contact voltage test: 100 - 600 V AC (optical and acoustic) Maximum input voltage: 600 V AC/DC Input impedance: >7.5 MOhm, type 10 MOhm (V AC & V DC) AC voltage: 50 - 400 Hz Auto power off function: 15 minutes Over-voltage protection: CAT IV 600V Voltage supply: 2x 1.5 V Operating temperature range: 0° - +40°C (32° - 104°F) Storage temperature range: -10° - +50°C (14° - 122°F) LED torch: Ø 5mm white high-performance LED Dimensions: 165 x 85 x 32 mm Weight: 300 g including batteries Included with delivery: 1x user manual, 1x measuring lead, 1x carry case, 2x battery 1.5V AAA, LR03
