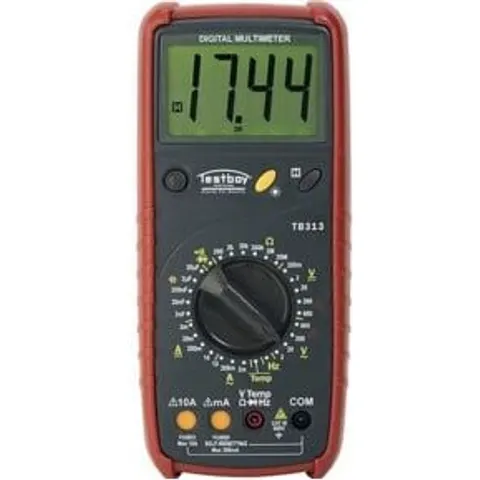

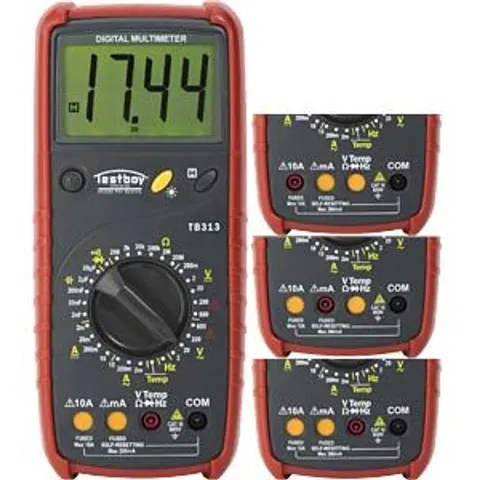

TESTBOY 313 - Digital multimeter

The Testboy 313 is used in the areas of electrical installation, service and industry. Testboy measuring and testing devices have been accompanying the user in all of the areas of use for decades. The Testboy 313 is equipped with a well-readable 28 mm LC display, background lighting and mechanical measuring range protection. The measuring range protection makes faulty operation impossible. • IEC/EN 61010-1 (DIN VDE 0411) Technical data DC voltage: 200 mV, 2, 20, 200 V ±0.5%, +3 digit 600 V ±0.8%, +5 digit AC voltage: 2, 20, 200 V ±1.0%, +5 digit 600 V ±1.2%, +5 digit DC current: 2 mA, 20 mA ±1.0%, +3 digit 200 mA, ±1.5%, +3 digit 10 A ±2.0%, +5 digit AC current: 2 mA, 20 mA ±1.0%, +5 digit 200 mA, ±1.5%, +3 digit 10 A ±2.0%, +8 digit Resistance: 200 ohms ±1.0%, +5 digit 2 kOhm, 20 kOhm, 200 kOhm, ±1.0%, +5 digit 2 MOhm ±1.0%, +5 digit 20 MOhm ±1.5%, +5 digit Diode test: Yes Continuity test: Yes Temperature measurement: -20°C to 1000°C Maximum input voltage: 600 V AC/DC Input impedance: >7.5 MOhm, type 10 MOhm (V AC & V DC) AC voltage: 50 - 400 Hz Over-voltage protection: CAT III 600V Fuses: 200 mA (self-resetting), 10 A/1000 V (quick-acting) Over-voltage protection: CAT III 300V Voltage supply: 1x 9 V 6LR61 Operating temperature range: 0° - +40°C (32° - 104°F) Storage temperature range: -10° - +50°C (14° - 122°F) Dimensions: 200 x 89 x 38 mm Weight: 380 g including batteries Included with delivery: 1x user manual, 1x measuring lead, 1x holster, 1x temperature sensor, 1x 9V battery, 6LR61
