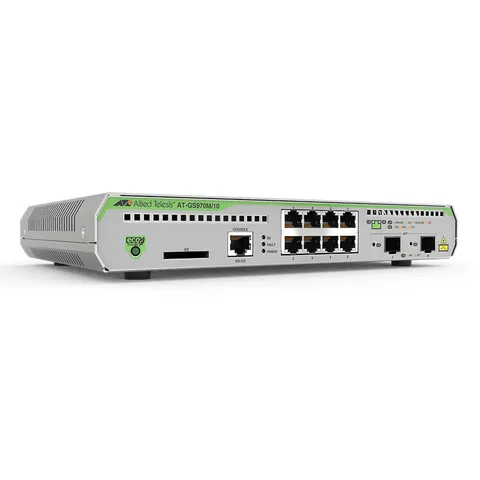

Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 10G Etherne

Managed L3 Quality of Service (QoS) support Basic switching RJ-45 Ethernet ports quantity: 8 10G support MAC address table: 16000 entries Switching capacity: 20 Gbit/s Access Control List (ACL) Rack mounting Power over Ethernet (PoE) The Allied Telesis CentreCOM® GS970M/10PS Layer 3 managed switch features eight 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge. Management features Quality of Service (QoS) support Yes Switch layer L3 Switch type Managed Ports & interfaces SFP module slots quantity 2 Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000) Basic switching RJ-45 Ethernet ports quantity 8 Network Number of VLANs 2048 VLAN support Yes Flow control support Yes Spanning tree protocol Yes IP routing Yes Full duplex Yes Port mirroring Yes 10G support Yes Networking standards IEEE 802.2, IEEE 802.3 Data transmission Packet buffer memory 1.5 MB Jumbo frames support Yes Latency (1 Gbps) 3.4 µs Latency (10-100 Mbps) 7.8 µs Switching capacity 20 Gbit/s MAC address table 16000 entries Security Loop protection Yes SSH/SSL support Yes BPDU filtering/protection Yes IGMP snooping Yes Access Control List (ACL) Yes DHCP features DHCP client Multicast features Multicast support Yes Design Product colour Grey Rack mounting Yes Performance Noise level 33 dB Flash memory 64 MB Internal memory 256 MB Power AC input frequency 50 - 60 Hz AC input voltage 100 - 240 V Power over Ethernet (PoE) Total Power over Ethernet (PoE) budget 124 W Power over Ethernet plus (PoE+) ports quantity 8 Power over Ethernet (PoE) Yes Operational conditions Heat dissipation 55 BTU/h Operating altitude 0 - 3000 m Storage relative humidity (H-H) 5 - 95% Operating relative humidity (H-H) 5 - 90% Storage temperature (T-T) -25 - 70 °C Operating temperature (T-T) 0 - 50 °C Weight & dimensions Weight 2.1 kg Height 42.5 mm Depth 275 mm Width 210 mm Packaging data Package weight 3.45 kg Package height 150 mm Package depth 360 mm Packa
