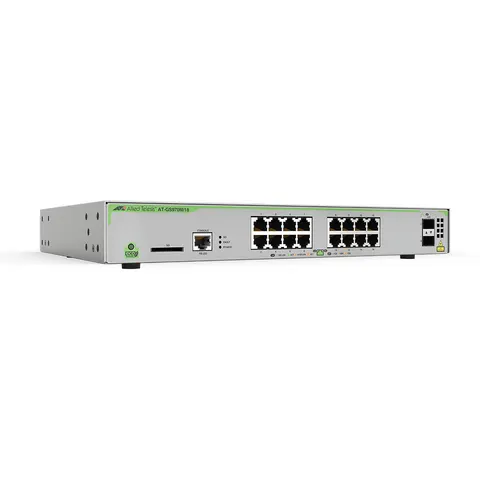

Allied Telesis AT-GS970M/18-30 network switch Managed L3 Gigabit Ether

AlliedWare Plus Enterprise-class operating system Eco-friendly for reduced running costs Network Access Control (NAC) for edge security Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks Static Routing and RIP support Layer 3 environments The Allied Telesis CentreCOM® GS970M/18 Layer 3 managed switch features sixteen 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge. Management features MIB support SNMP MIB System event log Yes Traffic classification Yes ARP inspection Yes Web-based management Yes Quality of Service (QoS) support Yes Switch layer L3 Switch type Managed Ports & interfaces Compatible memory cards SD, SDHC Console port RS-232 Fiber optic connector SFP Combo SFP ports quantity 2 Gigabit Ethernet (copper) ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 16 Network Number of VLANs 4094 Virtual LAN features Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN VLAN support Yes Link aggregation Yes Fast leave Yes Ethernet Ring Protection Switching (ERPS) Yes Flow control support Yes Broadcast storm control Yes Spanning tree protocol Yes Full duplex Yes Port mirroring Yes Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T 10G support No Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z Optical fiber Fiber ethernet cabling technology 100BASE-X, 1000BASE-X Data transmission Packet buffer memory 1.5 MB Jumbo frames 10000 Jumbo frames support Yes Static route Yes Latency (1 Gbps) 3.4 µs Latency (10-100 Mbps) 7.9 µs Forwarding rate 26.8 Mpps Switching capacity 36 Gbit/s MAC address table 16000 entries Security Loop protection Yes Security algorithms 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS Authentication MAC-based authentication, P
