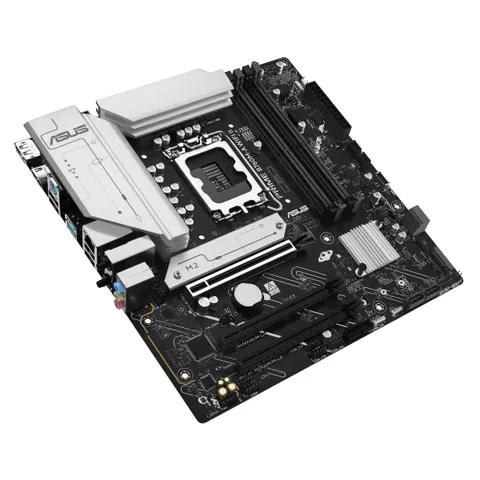

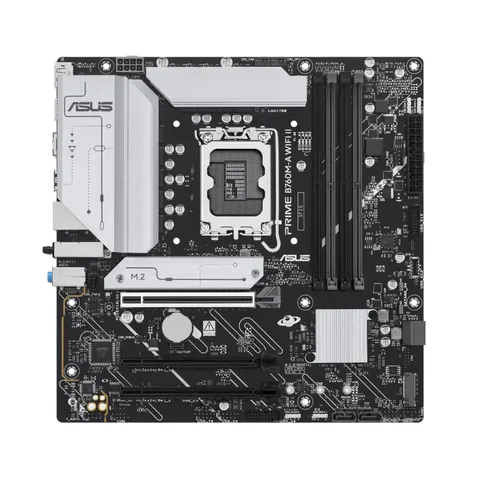

ASUS B760M-A Motherboards
- Prices from £122.56 to £140.29 at 2 shops
- No. 48 of 664 in PC components
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® Core™ processors
- Ultrafast Connectivity: WIFI 6E, PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® connector
- Comprehensive Cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Variant: B760M-A
Up to £17.73 cheaper than the most expensive shop
We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
2 offers compared
Sorted by total price including delivery-
£122.56Go to shop: PCHUB.UK -
£140.29Go to shop: Tesco Stores
Prices include VAT, last checked 9 October at 05:25. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- £122.56
- Lowest
- £122.34
- Average
- £122.47
- Highest
- £122.56
Product details
| Brand | Asus |
|---|---|
| Category | PC components |
| Barcode (EAN) | 4711636275439 |
| Shops compared | 2 |
| Price range | £122.56 – £140.29 |
| On Pricuro since | 3 October 2026 |
Processor
3
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
Memory
9
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers
6
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
1
| Parallel processing technology support | Not supported |
|---|
Internal I/O
14
| USB 2.0 connectors | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports
7
| USB 2.0 ports quantity | 4 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 1 |
Network
7
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Features
6
| Motherboard chipset | Intel B760 |
|---|---|
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
Expansion slots
8
| PCI Express x16 (Gen 4.x) slots | 2 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
BIOS
2
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 128 Mbit |
Packaging data
4
| Package width | 275 mm |
|---|---|
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
Weight & dimensions
2
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Packaging content
3
| Cables included | SATA |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
Manufacturer data: Open Icecat
Product description
PRIME B760M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Frequently asked questions
Where is ASUS B760M-A Motherboards cheapest?
Right now at PCHUB.UK for £122.56. We compare 2 offers.
How much does ASUS B760M-A Motherboards cost?
Prices range from £122.56 to £140.29. Over the last 90 days it cost £122.47 on average.
Is now a good time to buy ASUS B760M-A Motherboards?
Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Is ASUS B760M-A Motherboards in stock?
Yes, 2 shops list it as in stock.
