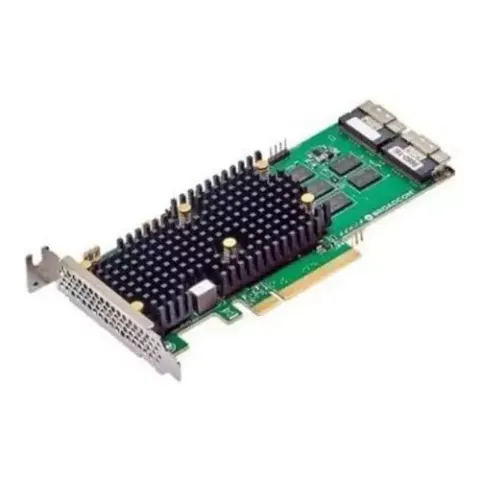

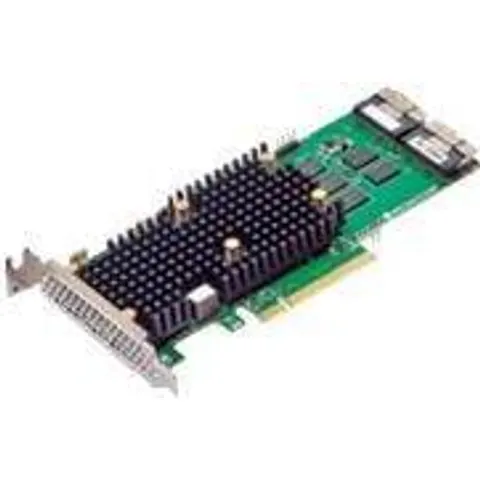

Broadcom 9660-16i interface cards/adapter Internal SAS SATA SFF-8654

Low profile, half-length x8 PCIe Gen 4.0 adapter Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller SFF-8654 (SlimSAS) x8 connectors Form-factor friendly cable exit Hardware Secure Boot and SPDM Attestation support Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD SFF-TA-1005 Universa Bay Management (UBM) Ready Add more protection and peace of mind with CacheVault flash cache protection The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.The MegaRAID 9660-16i adapter, based on the SAS4116 RAID-on-Chip (RoC), is the highest performing x8 PCIe Gen 4.0 storage adapter available to meet the ever-increasing demands of the data center. The low power MegaRAID 9660-16i allows users to seamlessly transition their existing storage infrastructure to get breakthrough SSD performance with minimal airflow and cooling requirements. Ports & interfaces Host interface PCIe Output interface SAS, SATA, SFF-8654 Expansion card form factor Low-profile Expansion card standard PCIe 4.0 NVMe Yes Internal mini-SAS ports 2 Design Internal Yes Product colour Black, Green, Silver Mean time between failures (MTBF) 3000000 h Certification Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15
