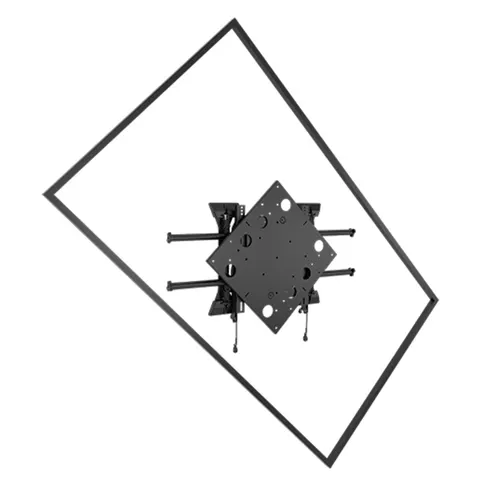

Chief Freestyle Flat Panel Rotation Adapter

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys™ or Fusion® mounts. FRA shown in picture with Fusion® mount.Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws. Positive lockouts at 15 degree increments Provides 90 degrees of rotation for 360 degrees of rangeOverlapping displays (with Fusion® FCADA) adds another level of customization and creativityMicro-adjustment (with ConnexSys™)Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg) Weight capacity when used with STMS1U. MTMS1U: 55 lbs (24.95 kg)Use with Fusion® wall. ceiling and freestanding mountsPositive lockouts at 15 degree incrementsTypical Screen Size: Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
