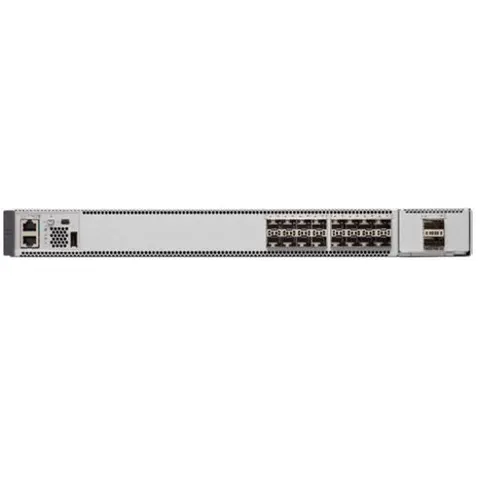

Cisco Catalyst 9500 16-PORT 10GIG SWITCH. NETWORK ADVANTAGE Managed L2

The Cisco® Catalyst® 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches. supporting full programmability and serviceability. Based on an x86 CPU. the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform. built for security. IoT. and cloud. The switches come with a 4-core. 2.4-GHz CPU. 16-GB DDR4 memory. and 16-GB internal storage.The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP+) and 1G/10G Small Form-factor Pluggable Plus (SFP/SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs. Multicast VPN [MVPN]. and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database. cross-domain connectivity. and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching. Graceful Insertion and Removal (GIR). Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO). redundant platinum-rated power supplies. and fans.
