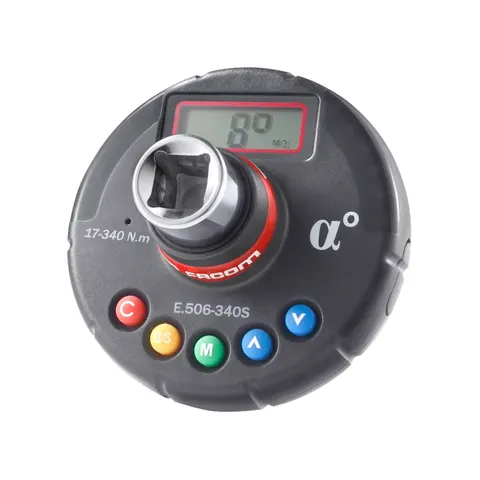

Facom E.506-340S Torque & Angle Adaptor

The Facom E.506-340S is an electronic torque and angle adaptor designed for use in confined spaces. It provides torque or angle increments with an electronic display to prevent reading errors, and indicates tightening completion via LEDs and a buzzer. The adaptor allows nine torque and/or angle values to be pre-set, stores up to 50 results in memory, and features a locking keypad and magnetised ratchet fastening. Torque/angle tightening is performed in two steps: pre-torquing to approach parts and eliminate interface faults, then final tightening at a specific angle. This method prevents fastener loosening or breaking. Torque accuracy is ±3° and angle accuracy is ±2°, with a capacity range of 17–340 Nm. Measuring units include Nm, lbf·ft, lbf·in, kg·cm and degrees, selectable in peak or follower mode. Supplied in a plastic case with calibration certificate and two AAA-LR03 1.5 V batteries. Weight 554 g; dimensions 131 mm L × 105 mm W × 149 mm H.
