Gigabyte

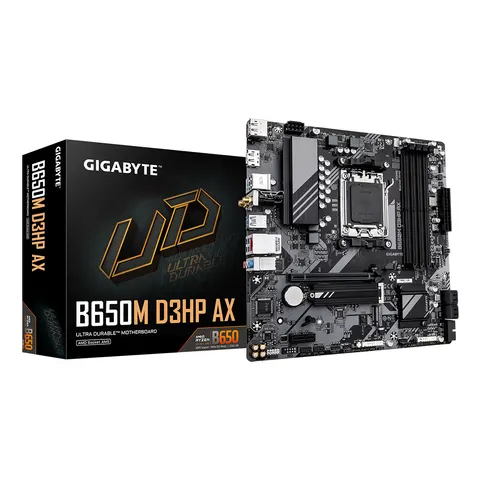

Gigabyte B650M D3HP AX Micro ATX Motherboard
- Prices from £105.14 to £194.99 at 3 shops
- No. 9 of 683 in PC components
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
Variant: B650M D3HP Micro ATX
-
B650M D3HP Micro ATX £105.14 -
B650 EAGLE £116.28
£105.14
PCHUB.UK see shop
Up to £89.85 cheaper than the most expensive shop
Building the price history
We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
3 offers compared
Sorted by total price including delivery-
£105.14Go to shop: PCHUB.UK -
£122.42Go to shop: argos.co.uk -
Tesco Stores GIGABYTE B650M D3HP AX AM5 LGA 1718 AMD B650 M-ATX DDR5, 2x PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, Wi-Fi 6E, 2.5GbE LAN Motherboard - B650M D3HP£194.99Go to shop: Tesco Stores
Prices include VAT, last checked 11 October at 05:21. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- £105.14
- Lowest
- £99.82
- Average
- £101.00
- Highest
- £105.14
Product details
| Brand | Gigabyte |
|---|---|
| Category | PC components |
| Barcode (EAN) | 4719331859510 |
| Shops compared | 3 |
| Price range | £105.14 – £194.99 |
| Total | Lowest total price including delivery: £122.42 |
| On Pricuro since | 3 October 2026 |
Processor
4
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
Memory
10
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
Storage controllers
6
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
5
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
Internal I/O
15
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
Rear panel I/O ports
12
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
9
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
11
| Motherboard chipset | AMD B650 |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
7
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
BIOS
6
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
2
| Country of origin | China |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
5
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
4
| Package width | 270 mm |
|---|---|
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.2 kg |
Weight & dimensions
3
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
4
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Technical details
1
| Warranty period | 3 year(s) |
|---|
Manufacturer data: Open Icecat
Product description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Frequently asked questions
Where is Gigabyte B650M D3HP AX Micro ATX Motherboard cheapest?
Right now at PCHUB.UK for £105.14. We compare 3 offers.
How much does Gigabyte B650M D3HP AX Micro ATX Motherboard cost?
Prices range from £105.14 to £194.99. Over the last 90 days it cost £101.00 on average.
Is now a good time to buy Gigabyte B650M D3HP AX Micro ATX Motherboard?
Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Is Gigabyte B650M D3HP AX Micro ATX Motherboard in stock?
Yes, 3 shops list it as in stock.
