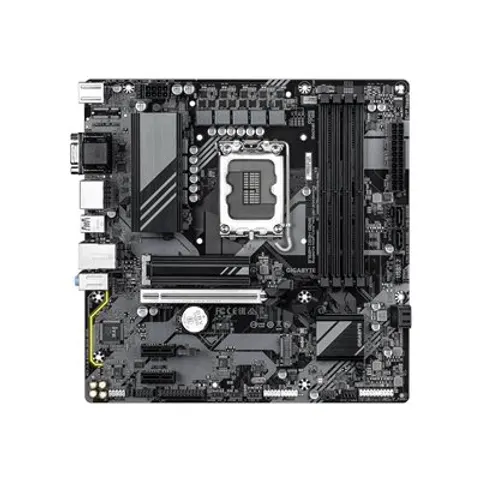

Home Computers & accessories PC components GIGABYTE B760M DS3H GEN5 Motherboard Gigabyte GIGABYTE B760M DS3H GEN5 Motherboard PCIe Gen5 Performance: Perfect Sync to Win Supports Intel Core 14th/ 13th /12th processors EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution See all 101 specifications Up to £18.14 cheaper than the most expensive shop
Building the price history We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
2 offers compared Sorted by total price including delivery ● In stock see shop
£91.85
Go to shop: PCHUB.UK ● In stock see shop
£109.99
Go to shop: Tesco Stores Prices include VAT, last checked 10 October at 11:55. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history Lowest price per day over 8 days.
Now £91.85
Lowest £79.74
Average £88.82
Highest £91.85 Product details Product details Brand Gigabyte Category PC components Barcode (EAN) 4719331872793 Shops compared 2 Price range £91.85 – £109.99 On Pricuro since 3 October 2026
Processor 3 Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700
Memory 10 Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Supported memory clock speeds 5600,5200,4800,4400 MHz Supported memory clock speed (max) 5600 MHz Maximum internal memory 256 GB Unbuffered memory Yes Maximum internal memory per slot 64 GB
Storage controllers 6 Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, PCI Express 4.0, SATA III Number of HDDs supported 4 Number of storage drives supported 6 RAID support Yes RAID levels 0, 1, 5, 10
Graphics 4 Parallel processing technology support Not supported Maximum resolution 4096 x 2304 pixels HDCP Yes DirectX version 12.0
Internal I/O 18 USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Number of SATA III connectors 4 S/PDIF out connector Yes Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 1 Number of chassis fan connectors 3 EPS power connector (8-pin) Yes Number of EPS power connectors (8-pin) 1 TPM connector Yes Parallel connector Yes Serial port headers 1 12V power connector Yes RGB LED pin header Yes Number of RGB LED pin headers 3
Rear panel I/O ports 13 USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 PS/2 ports quantity 1 VGA (D-Sub) ports quantity 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 2 DisplayPort version 1.2 Headphone outputs 1 Line-in Yes Microphone in Yes
Network 4 Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet LAN controller Realtek RTL8125 Wi-Fi No
Features 11 Motherboard chipset Intel B760 Express Audio chip Realtek ALC897 Audio output channels 7.1 channels Product colour Dark brown PC health monitoring Fan, Temperature, Voltage, Water cooling Component for PC Motherboard form factor micro ATX Motherboard chipset family Intel Cooling type Passive Power source type ATX Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots 7 PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 2 1st M.2 largest key size 2280 1st M.2 highest PCI Express generation 4.0 2nd M.2 largest key size 2280 2nd M.2 highest PCI Express generation 4.0
BIOS 6 BIOS type UEFI AMI BIOS memory size 128 Mbit ACPI version 5.0 Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7
Logistics data 2 Country of origin China Products per shipping (inner) case 1 pc(s)
Battery 5 Battery weight 3 g Lithium weight per battery 0.07 g Number of battery cells 1 Battery technology Lithium-Manganese Dioxide (LiMnO2) Battery type CR2032
Packaging data 4 Package width 265 mm Package depth 265 mm Package height 54 mm Package weight 1.04 kg
Weight & dimensions 3 Width 244 mm Depth 244 mm Height 35 mm
Packaging content 3 Batteries included Yes Screws included Yes Bundled software Norton® Internet Security (OEM version)
Other features 1 Technical details 1 Manufacturer data: Open Icecat
Product description Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Frequently asked questions Where is GIGABYTE B760M DS3H GEN5 Motherboard cheapest? Right now at PCHUB.UK for £91.85. We compare 2 offers.
How much does GIGABYTE B760M DS3H GEN5 Motherboard cost? Prices range from £91.85 to £109.99. Over the last 90 days it cost £88.82 on average.
Is now a good time to buy GIGABYTE B760M DS3H GEN5 Motherboard? Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Is GIGABYTE B760M DS3H GEN5 Motherboard in stock? Yes, 2 shops list it as in stock.
£91.85Go to shop: PCHUB.UK
Tesco Stores GIGABYTE B760M DS3H GEN5 Intel B760 Express Micro-ATX LGA 1700 Motherboard - B760M DS3H GEN5£109.99Go to shop: Tesco Stores
