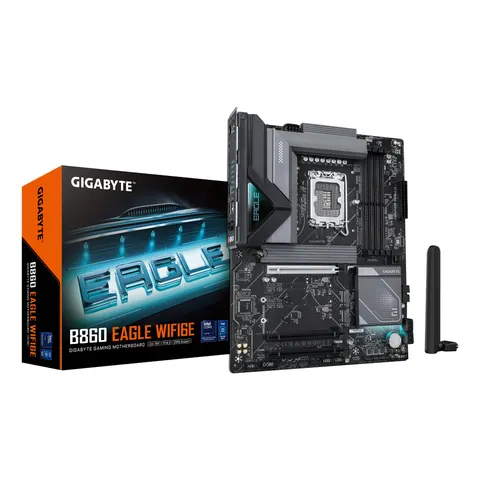

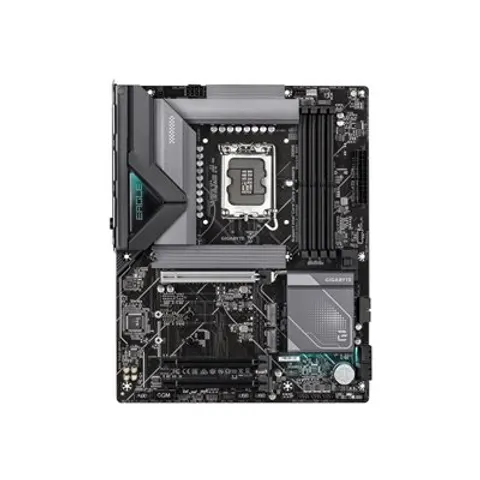

GIGABYTE B860 EAGLE WIFI6E Motherboard

Prices from £145.01 to £168.99 at 2 shops
No. 49 of 644 in PC components

Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM
Dual Channel DDR5：4*DIMMs
PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
M.2 Gen5 (Up to 25110) with EZ-Latch Plus
Advanced MOSFET Heatsinks/ M.2 Thermal Guard with EZ-Latch Click

See all 110 specifications

Variant: B860 EAGLE WIFI6E

£145.01

PCHUB.UK see shop

Up to £23.98 cheaper than the most expensive shop

Building the price history

We have only just started recording this price. After two weeks we will show here whether the current price is a good one.

Go to shop: PCHUB.UK 2 offers compared

2 offers compared

Sorted by total price including delivery

PCHUB.UK Lowest price GIGABYTE B860 EAGLE WIFI6E Motherboard

● In stock see shop

£145.01
Go to shop: PCHUB.UK
Tesco Stores GIGABYTE B860 EAGLE WIFI6E ATX LGA 1851 Motherboard

● In stock see shop

£168.99
Go to shop: Tesco Stores

Prices include VAT, last checked 9 October at 00:55. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.

Price history

1 month

Lowest price per day over 7 days.

Now: £145.01
Lowest: £145.01
Average: £145.01
Highest: £145.01

Product details

Product details
Brand	Gigabyte
Category	PC components
Barcode (EAN)	4719331866822
Shops compared	2
Price range	£145.01 – £168.99
On Pricuro since	3 October 2026

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	5600,6400,9066 MHz
Supported memory clock speed (max)	9066 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
TPM connector	Yes
Serial port headers	1
Number of water pump connectors	3
RGB LED pin header	Yes
Number of RGB LED pin headers	4

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	2.1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	2

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125D
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3

Features

Motherboard chipset	Intel B860
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Product colour	Dark brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	25110
3rd M.2 highest PCI Express generation	4.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7

Logistics data

Country of origin	China
Products per shipping (inner) case	1 pc(s)

Battery

Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032

Packaging data

Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.92 kg

Weight & dimensions

Width	305 mm
Depth	244 mm
Height	35 mm

Packaging content

Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software

Other features

Weight	1.72 kg

Technical details

Warranty period	3 year(s)

Manufacturer data: Open Icecat

Product description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Frequently asked questions

Where is GIGABYTE B860 EAGLE WIFI6E Motherboard cheapest?

Right now at PCHUB.UK for £145.01. We compare 2 offers.

How much does GIGABYTE B860 EAGLE WIFI6E Motherboard cost?

Prices range from £145.01 to £168.99. Over the last 90 days it cost £145.01 on average.

Is now a good time to buy GIGABYTE B860 EAGLE WIFI6E Motherboard?

Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.

Is GIGABYTE B860 EAGLE WIFI6E Motherboard in stock?

Yes, 2 shops list it as in stock.
