Gigabyte

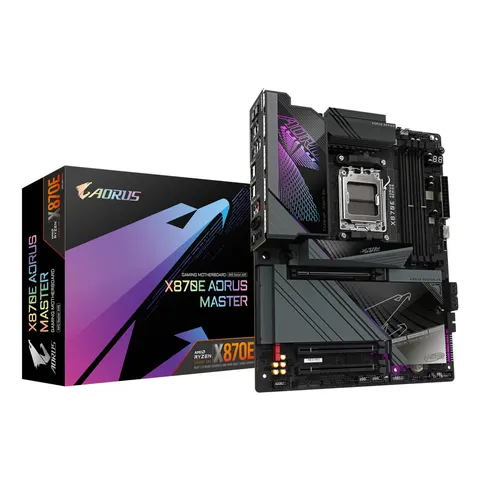

GIGABYTE X870E AORUS MASTER Motherboard
- Prices from £334.35 to £481.99 at 2 shops
- No. 47 of 647 in PC components
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
- Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- M.2 Gen5 with EZ-Latch Plus
Variant: X870E MASTER
-
X870E MASTER £334.35 -
X870E MASTER X3D ICE £395.24 -
X870E PRO £299.74 -
Z890 MASTER £385.19 -
X870E PRO X3D £298.40 -
X870E PRO ICE £261.73 -
X870E ELITE WIFI7 £239.14 -
X870E PRO X3D ICE £298.40 -
X870 STEALTH ICE £269.77 -
X870E ELITE WIFI7 ICE £256.23 -
X870 ELITE WIFI7 £223.50 -
X870E MASTER X3D - Supports AMD Ryzen 9000 £467.13
£334.35
PCHUB.UK see shop
Up to £147.64 cheaper than the most expensive shop
Building the price history
We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
2 offers compared
Sorted by total price including delivery-
£334.35Go to shop: PCHUB.UK -
Tesco Stores GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16plus2plus2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 plus 1xPC£481.99Go to shop: Tesco Stores
Prices include VAT, last checked 9 October at 20:57. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- £334.35
- Lowest
- £334.35
- Average
- £334.35
- Highest
- £334.35
Product details
| Brand | Gigabyte |
|---|---|
| Category | PC components |
| Barcode (EAN) | 4719331864354 |
| Manufacturer part number | X870EAORUSMASTER |
| Shops compared | 2 |
| Price range | £334.35 – £481.99 |
| On Pricuro since | 3 October 2026 |
Processor
5
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
Memory
11
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz |
| Supported memory clock speed (max) | 8600 MHz |
| Maximum internal memory | 256 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
Storage controllers
6
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
3
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| DirectX version | 12.0 |
Internal I/O
16
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 5 |
Rear panel I/O ports
12
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
Network
9
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 5 Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
9
| Motherboard chipset | AMD X870 |
|---|---|
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 x64 |
Expansion slots
13
| PCI Express x4 slots | 2 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
BIOS
7
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
2
| Country of origin | China |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
5
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
4
| Package width | 345 mm |
|---|---|
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.97 kg |
Weight & dimensions
3
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
3
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
Other features
1
| Weight | 2.54 kg |
|---|
Technical details
1
| Warranty period | 3 year(s) |
|---|
Manufacturer data: Open Icecat
Product description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Frequently asked questions
Where is GIGABYTE X870E AORUS MASTER Motherboard cheapest?
Right now at PCHUB.UK for £334.35. We compare 2 offers.
How much does GIGABYTE X870E AORUS MASTER Motherboard cost?
Prices range from £334.35 to £481.99. Over the last 90 days it cost £334.35 on average.
Is now a good time to buy GIGABYTE X870E AORUS MASTER Motherboard?
Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Is GIGABYTE X870E AORUS MASTER Motherboard in stock?
Yes, 2 shops list it as in stock.
