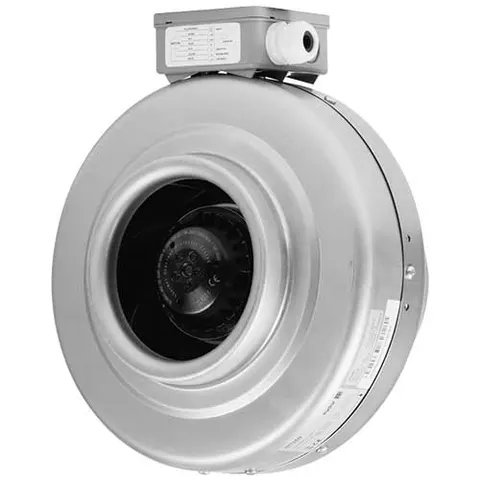

Hydor HIT200 Inline Centrifugal Duct Fan 200mm

The Hydor HIT200 is part of the HIT range of all-metal in-line centrifugal fans, providing the ideal solution for high-performance requirements in low-airflow, medium-pressure systems. Designed for greenhouse, grow-room and general commercial ventilation, it delivers up to 874 m³/h through 200 mm ducting with high performance and quiet operation. Airflow up to 874 m³/h; 200 mm connection Three-speed IP44 external-rotor motor; fully speed controllable Single-inlet backward-curved centrifugal impeller with air guide vanes Thermal overload protection; IP54-rated terminal box Robust galvanised pressed-steel casing; 25 mm spigots for rigid or flexible duct Integral mounting brackets for horizontal or vertical mounting at any angle Suitable for Greenhouse and grow-room ventilation; general commercial extract Low-airflow, medium-pressure duct systems; ceiling-void mounting Installation Connects to rigid or flexible circular ducting via 25 mm spigots, fixed at any angle with the integral brackets. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand Hydor Model HIT200 Type All-metal inline centrifugal duct fan Duct connection 200 mm (25 mm spigots) Airflow (max) 874 m³/h Motor Three-speed AC external rotor (IP44) Impeller Single-inlet backward-curved centrifugal with air guide vanes Protection Thermal overload; IP54 terminal box Casing Galvanised pressed sheet steel Mounting Any angle; integral brackets included Manuals & GuidesHydor HIT200 DatasheetHydor HIT200 Installation Guide
