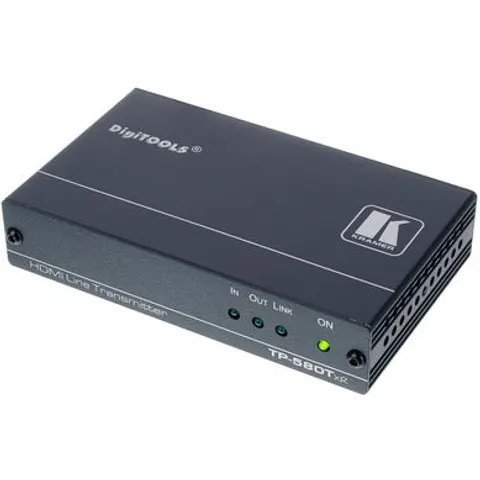

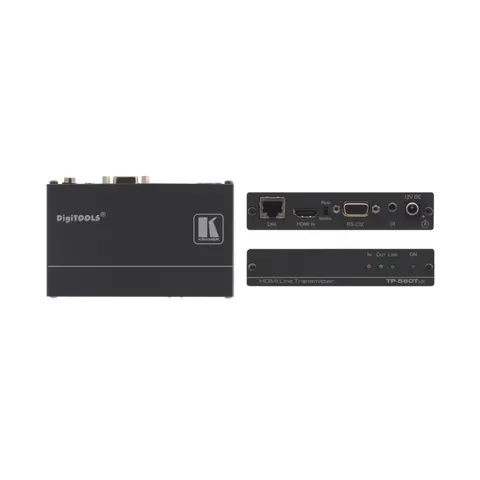

Kramer Electronics TP-580TXR AV extender AV transmitter Black

The TP−580TXR is an extended range. HDBaseT twisted pair transmitter for HDMI. bidirectional RS−232 and IR signals. The TP−580TXR inputs HDMI. RS−232. and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580RXR receiver.- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).- HDTV Compatible.- HDCP Compliance.- HDBaseT™ Technology.- HDMI Support - Deep Color. x.v.Color™. Lip Sync. HDMI Uncompressed Audio Channels. Dolby TrueHD. DTS−HD. CEC.- 3D Pass-Through.- EDID PassThru - Passes EDID signals between the source and display.- 2K & 4K Support.- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface. allowing status requests and remote control of the destination unit.- System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.- Cable - For optimum range and performance using HDBaseT™. use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution. source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.- Indicators - Status LEDs for input. output. link and power.- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
