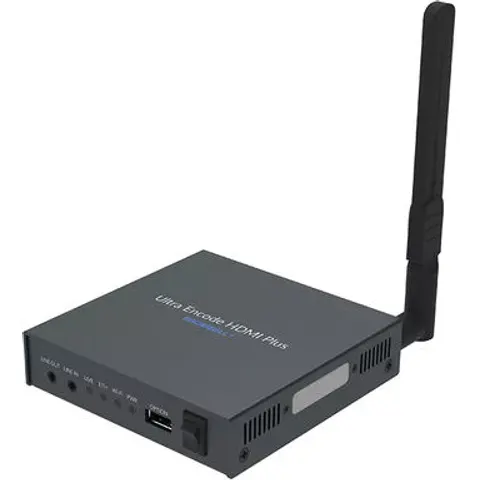

MAGEWELL Ultra Encode HDMI Plus

Ultra Encode HDMI Plus• Flexible & Universal Streaming and Recording Encoder• Live streaming and recording with support for H.264 H.265 NDI? HX2 and NDI? HX3• Flexible choice of streaming protocols including RTMP RTMPS SRT HLS and more• Control via web interface or optional Control Hub centralized management softwareInput Features• Support for up to 4096x2160 4:4:4/4:2:2 30fps input and loop through signals• Input & loop through 8-Channel 24-bit HDMI embedded audio• Input audio from 3.5 mm LINE INEncoding Features• Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30• Max bitrate: 62Mbps (NDI? HX3) 32Mbps (Others)• Support for H.264/HEVC video encoding• Provide video aspect ratio conversion image rotation and cropping for the main and sub streams• Encoding 8-channel AAC and audio channels mapping• Side-by-Side 3D video encodingStreaming Features• Natively support Facebook Twitch YouTube and WOWZA• Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI? HX2/NDI? HX3/HLS/TS over UDP/TS over RTP/TVU ISSP• Allow simultaneous 6 sessions over multiple streaming protocols• Support for streaming scheduleRecording Features• Record to internal storage (128GB) external USB storage or network attached storage (NFS/CIFS)• Automatically upload recorded files to remote file storage platform• Video recordings in MP4 MOV or TS format• Normal recording and loop recording supported• Support for recording scheduleOthers• PoE available• Tally lights for NDI? HX3• Remote control via Web GUI and Control Hub• Provide HTTP APIs
