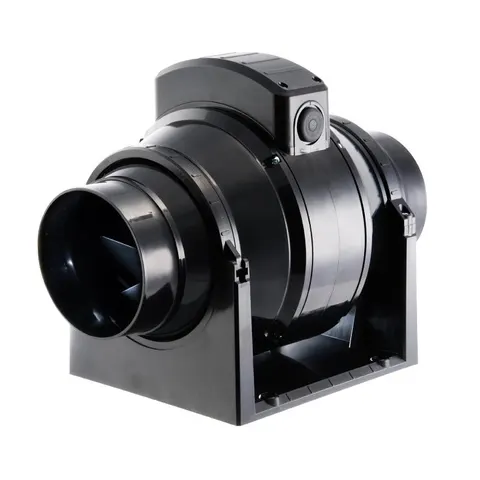

Manrose MF150S Inline Mixed Flow Extractor Fan 6" - 150mm

The Manrose MF150S is an in-duct mounted mixed-flow fan designed to produce higher working pressures for applications requiring high air flows with low relative noise. It uses a high-quality ball-bearing, long-life motor — continuously rated and warranted for at least 30,000 hours — and moves up to 500 m³/h through 150 mm duct. Airflow up to 500 m³/h; 150 mm connection (rigid or flexible duct) Three speed settings, selected via an internal dip switch Ball-bearing, long-life motor; continuously rated (30,000 h / 3 years) Double insulated — no earth required IPX4; BEAB approved; fully Building Code compliant Fan assembly easily removed for maintenance Suitable for Higher-pressure duct extract on rigid or flexible ducting Domestic and light-commercial ducted applications Installation Speeds set via the internal dip switch; the specially designed construction lets the fan assembly be removed easily from rigid duct for maintenance. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand Manrose Model MF150S Type In-line mixed-flow duct fan Duct connection 150 mm Airflow (max) 500 m³/h Motor 3-speed AC (dip-switch selectable); ball-bearing, 30,000 h life Insulation Double insulated (no earth required) Rating IPX4; BEAB approved; Building Code compliant Suitable duct Rigid or flexible Warranty 3 Year Manufacturer Manuals & GuidesManrose MF150S DatasheetManrose MF150S Installation Guide
