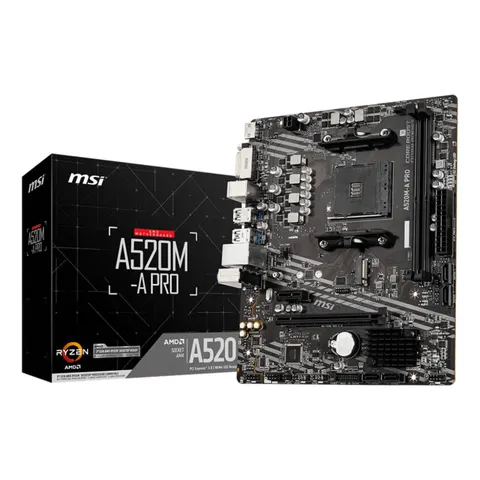

MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX
- Price £59.57 at 1 shop
- No. 32 of 622 in PC components
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Variant: A520M-A PRO A520 AM4 micro
-
A520M-A PRO A520 AM4 micro £59.57 -
A520M PRO A520 AM4 micro £66.51 -
B550M PRO-VDH B550 AM4 micro £82.48 -
B550-A PRO B550 AM4 £98.62 -
PRO B840M-B B840 AM5 micro £88.06 -
PRO B650M-P B650 AM5 micro £1,279.99 -
PRO B550M-P B550 AM4 £82.13 -
B550M PRO-VDH WIFI B550 AM4 micro £95.13 -
PRO B850M-P WIFI B850 AM5 micro £109.62 -
PRO A620AM-B EVO A620A AM5 micro £67.37 -
PRO B840M-P WIFI6E micro AM5 DDR5 £118.05 -
PRO B850-P WIFI B850 AM5 £153.41
We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Offer
Sorted by total price including delivery-
£59.57Go to shop: PCHUB.UK
Prices include VAT, last checked 9 October at 17:06. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- £59.57
- Lowest
- £54.28
- Average
- £54.33
- Highest
- £54.36
Product details
| Brand | MSI |
|---|---|
| Category | PC components |
| Barcode (EAN) | 4719072749927 |
| Shops compared | 1 |
| On Pricuro since | 3 October 2026 |
Processor
4
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
8
| Supported memory types | DDR4-SDRAM |
|---|---|
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
6
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | PCI Express 3.0, SATA |
| Number of HDDs supported | 5 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
3
| On-board graphics card | No |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
Internal I/O
9
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
7
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
5
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
8
| Motherboard chipset | AMD A520 |
|---|---|
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Number of mounting holes | 8 |
Expansion slots
3
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
Logistics data
1
| Harmonized System (HS) code | 84733020 |
|---|
Weight & dimensions
3
| Width | 236 mm |
|---|---|
| Depth | 200 mm |
| Height | 60 mm |
Other features
1
| Weight | 698 g |
|---|
Manufacturer data: Open Icecat
Product description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard,…
Read more
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Frequently asked questions
Where is MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX cheapest?
Right now at PCHUB.UK for £59.57. We compare one offer.
How much does MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX cost?
Currently £59.57.
Is now a good time to buy MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX?
Building the price history. We have only just started recording this price. After two weeks we will show here whether the current price is a good one.
Is MSI A520M-A PRO motherboard AMD A520 Socket AM4 micro ATX in stock?
Yes, one shop lists it as in stock.
