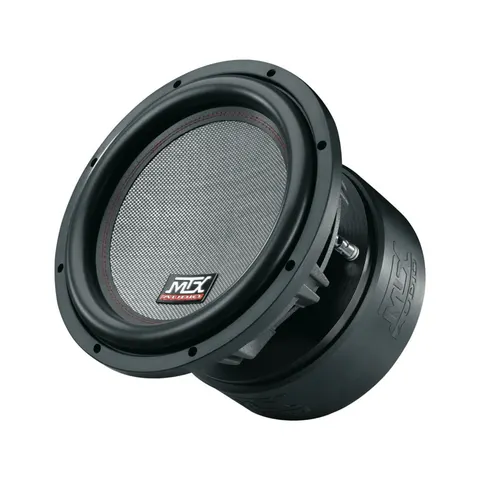

MTX RFL12 RFL 12" Subwoofer 3000W @ 2 Ohm

SPECIAL ORDER: This item is not held in stock in our UK warehouse. It can be ordered from the MTX factory in France and will take roughly 2/3 weeks to arrive. The MTX RFL12 subwoofer is the worthy heir to a line of extreme subwoofers. In 2002, the RFL152 with multiple SPL records, in 2005 the Jackhammer22 (Pimp My Ride), the biggest and heaviest sub ever marketed (165Kg diameter 56cm), in 2005 the Jackhammer24 the largest square subwoofer ever marketed... The RFL12 surpasses all of its ancestors... It is the very best. Gigantic magnetic structure with more than 14Kg of strontium… Perhaps the largest on the market 35mm thick front plate (It measured 8mm on the older T9500s). This is what it takes to pass the enormous magnetic flux generated by the magnet and control the coil like no other subwoofer can. 35mm thick rear plate. 100mm (4") BASV voice coil support. The strongest available on the market… 4-layer coil for extreme power handling. Flat wire to better fill the air gap and obtain better reactivity. Aluminum wire (for the weight), plated with copper (to pass the intensity) of the CCAR type. Double screwed Nomex spider for easier replacement and more precise assembly. The top suspension is capable of handling over 90mm of travel. Cone and suspension with double stitching of red thread. Symmetrical terminal blocks accepting 10mm2 cables. Cables terminal blocks-coils double is sewn on the spider to easily follow the deflections of the membrane. The weight of the RFL12 reaches 36kg. It comes in a wooden crate because the cardboard would not be enough. You need a hand truck or a pallet truck to move it. Its parameters are optimized for use in ported boxes. Technical spec: 30cm (12") Subwoofer Peak power: 9000W RMS power: 3000W Sensitivity: 90.0dB/2.83v/1m Impedance: 2Ω Single voice coil Coil diameter: 100mm (4") BL factor: 25.0 Response: 26Hz - 500Hz Depth: 23.0cm Weight: 36kg Thiele/Small parameters: Fs : 32 Hz Mms : 326 grams Re : 2 Ω Cms : 0,05 mm/N Z : 2 Ω Bl :
