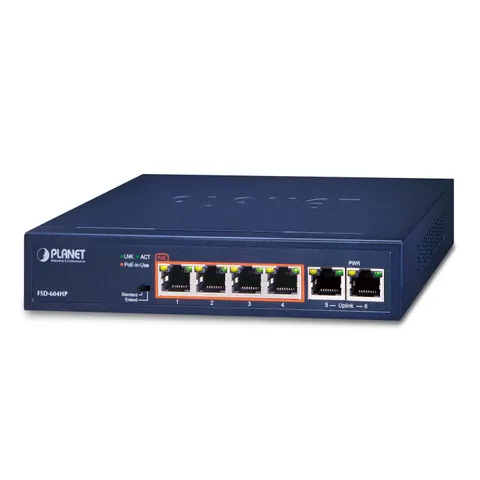

PLANET FSD-604HP network switch Unmanaged Fast Ethernet (10/100) Power

Centralized Power Distribution for HD IP Surveillance System PLANET FSD-604HP Desktop Switch provides four 802.3at PoE+ ports for catering to small-scale IP surveillance networks at a lower total cost. With dual 10/100BASE-TX uplink ports. the recorded HD video files from the 4 PoE IP cameras powered by the FSD-604HP are saved in the 4-channel NVR system. Its surveillance software performs comprehensive security monitoring and manages the surveillance system in the local LAN or remote site via Internet. The FSD-604HP’s advanced features are as follows: - 4-port PoE. 60-watt PoE budget - Two 10/100Mbps uplink ports - Can extend distance of up to 250m in the extend mode - 30-watt power output at speed of 10Mbps - Internal AC power. fanless design Two 10/100Mbps Uplink Ports The FSD-604HP comes with two uplink ports with 100Mbps transfer rate to ensure high-speed data and video transmission. reliable assurance for connection between the surveillance system and outdoor network where the four PoE+ ports can be used to their full potential. Innovative Port-based VLAN Protection The FSD-604HP features "Port-based VLAN Protection" where ports can be isolated from each other via one DIP switch. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other. Distance Extended for Transmission of Power and Data The built-in solid DIP switch provides "Standard" and "Extend" operation modes. The FSD-604HP operates as a normal IEEE 802.3at/af PoE Switch in the "Standard" operation mode. In the "Extend" operation mode. the FSD-604HP operates on a per-port basis in 10Mbps duplex mode but can support 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature. the FSD-604HP provides an additional solution for 802.3at/af PoE distance extension. thus saving the cost of Ethernet cable installation. Robust Protection The FSD-604HP provides contact discharge of ±4KV DC and air
