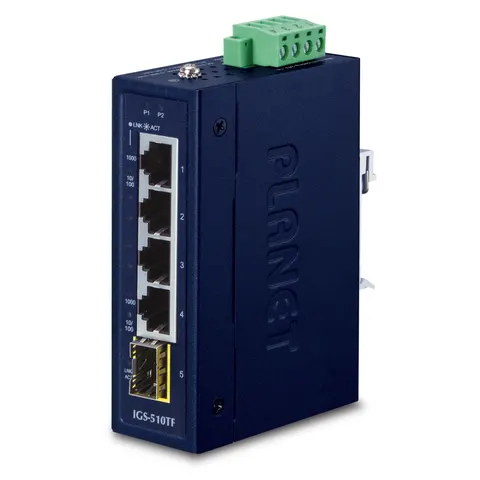

PLANET IGS-510TF network switch Unmanaged Gigabit Ethernet

Compact Size for More Practicability and Convenience PLANET IGS-510TF is an industrial-grade Gigabit Ethernet Switch. featuring four 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C and a wide-ranging redundant power system (9~48V DC or 24V AC). the IGS-510TF provides reliable. stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.Fiber-optic Link Capability Extends the Range of Network DeploymentThe maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices. the IGS-510TF’s SFP slot supporting 100BASE-FX/1000BASE-X. SFP modules. and more can reach a transmission distance of up to 120km.Thus. building a network solution of FTTH (Fiber to the Home). FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The IGS-510TF can handle extremely large amounts of data in a secure topology linking to a metro switch. backbone or high-capacity server.Small but ToughThe IGS-510TF is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C. the IGS-510TF is ideal for service providers. campuses and public areas to deploy outdoor wireless access points. outdoor IP cameras or IP phones in any places easily and efficiently.Dual Power Input for High Availability Network SystemThe IGS-510TF features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example b
