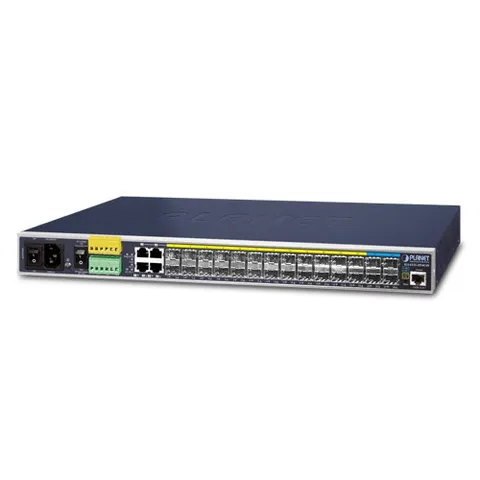

PLANET IGS-6325-20S4C4X network switch Managed L3 Gigabit Ethernet

10Gbps Fiber Ports and Multiple Dual Speed Fiber Ports Deliver High-speed Networking PLANET IGS-6325-20S4C4X Industrial Layer 3 Managed Switch features 20 100/1000Mbps SFP ports. 4 shared SFP ports. 4 10G SFP+ ports and Layer 3 IP routing in a 1U case. With 10Gbps uplink. the IGS-6325-20S4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-20S4C4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore. it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-6325-20S4C4X when placed in the cabinet.Layer 3 Routing SupportThe IGS-6325-20S4C4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually. and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches. and then uses the Shortest Path First algorithm to generate a route table based on that database.Cybersecurity Network Solution to Minimize Security RisksThe cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management. the IGS-6325-20S4C4X is equipped with console. web and SNMP management interfaces. With the built-in web-based management interface. the IGS-6325-20S4C4X offers an easy-to-use. platform independent management and configuration facility. The IGS-6325-20S4C4X supports SNMP and it can be managed via any management software based on the standard SNMP protocol. For reducing product learning time. the IGS-
