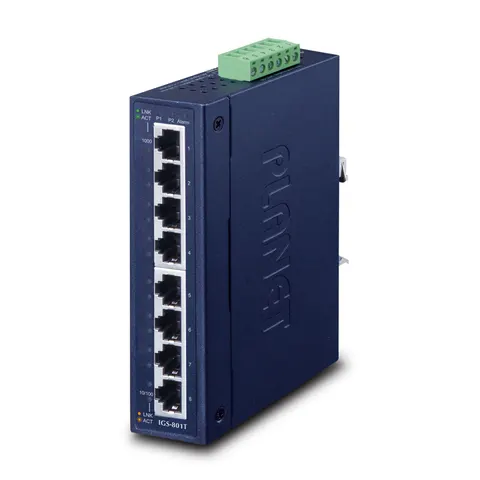

PLANET IGS-801T network switch Unmanaged L2 Gigabit Ethernet

Slim Type with More Practicability and ConveniencePLANET IGS-801T advanced. slim-type. industrial. hardened Gigabit Ethernet Switch with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus. it operates reliably in heavy industrial demanding environments.Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient use of cabinet space.Energy Saving with Lower Power ConsumptionThe IGS-801T. adopting the advanced green networking technology. provides the link-on cable length power saving and link-down power saving methods. These features makes the IGS-801T consume very low power in full load operation mode. which helps conserve energy effectively but maintains high performance efficiently.Green NetworkingWith the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol. the IGS-801T can automatically detect cable link status and network traffic. and thus is able to adjust power consumption accordingly. It enables the switches to consume less power when they are less active.Stable Performance under Difficult EnvironmentsThe IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C. the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC. 24V AC) for worldwide high availability applications requiring dual or backup power inputs.Robust Switch PerformanceThe IGS-801T offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 4K MAC address table. the IGS-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables t
