PLANET Industrial 2-Port network media converter Blue

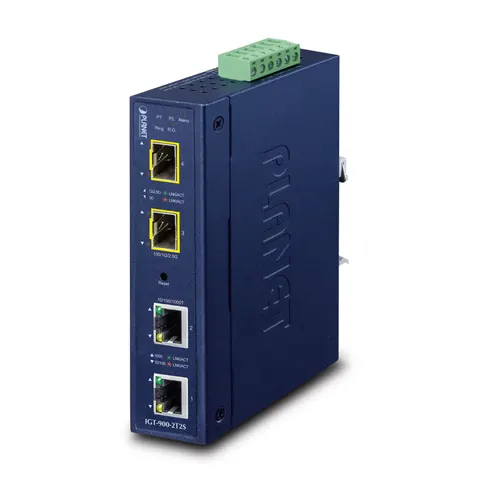

Supreme Managed Media Converter for Robust Environment PLANET IGT-900-2T2S. a fully-managed Gigabit Media Converter for harsh environments. features two 10/100/1000Mbps copper ports. two 100/1000/2500X SFP ports and redundant power system in an IP30 rugged but compact-sized case. The IGT-900-2T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure. it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces. abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With SFP fiber slots. it can be flexibly applied to extend the connection distance. Enhanced Smart Management FeaturesThe IGT-900-Series provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR). both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. - LLCF means when a device connected to the converter and the TP line loses the link. the converter’s fiber port will disconnect the link of transmission. - LLR means when a device connected to the converter and the fiber line loses the link. the converter’s fiber port will disconnect the link of transmission. Therefore. the IGT-900-2T2S greatly supports the administrators to manage the network efficiently. Port Backup modeVia the managed interface. the IGT-900-2T2S can be configured port backup mode. when in the port backup mode. it provides rapid copper/fiber redundancy of link for highly critical Ethernet applications. The port backup mode also supports auto-recovering function. If the destination port of a packet is link down. it will forward the packet to the other port of the backup pair.Network with Cybersec
