PLANET IP30 Industrial 4-port – 285605

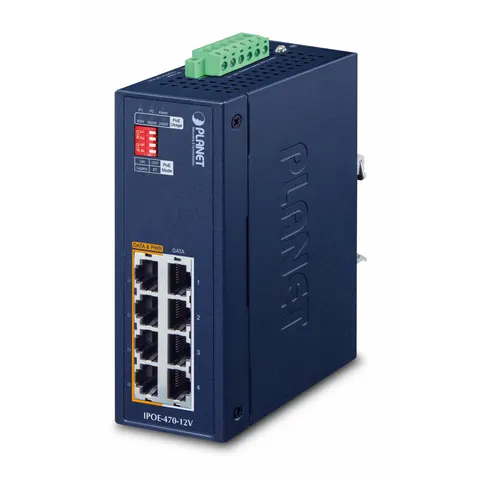

Compact and Robust Industrial 802.3bt PoE++ Network SolutionPLANET IPOE-470 industrial IEEE 802.3bt PoE++ injector hub series features four 10/100/1000BASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 240 watts. it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).The IPOE-470 series provides a quick. safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply. 802.3bt PoE++ Meets Ultra Power Demands of Powered DevicesAs the IPOE-470 series adopts the IEEE 802.bt PoE++ standard and PoH technology. it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses the triple amount of the power capability when compared to the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs. such as:- PoE PTZ speed dome cameras- Network devices - Thin clients- AIO (all-in-one) touch PCs. point of sale (POS) and information kiosks- Remote digital signage displays- PoE lightings Quick and Easy 802.3bt/at PoE Network DeploymentThe IPOE-470 series is installed between a regular Ethernet Switch and the PDs. Four ports are network (Ethernet) ports for data input while the other four ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.With data and Power over Ethernet from one unit. the IPOE-470 series can reduce power cable deployment and eliminate the need for dedicated electr
