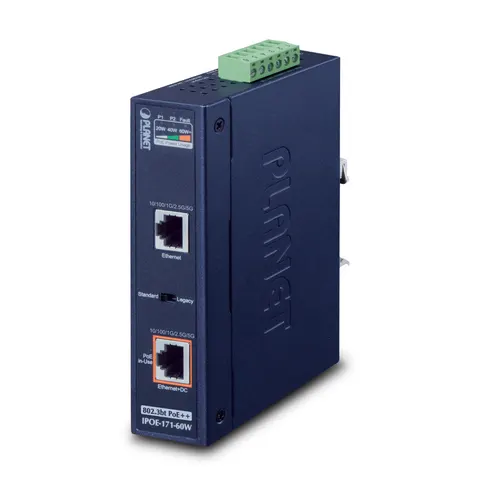

PLANET IPOE-171-60W PoE adapter

Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution PLANET IPOE-171-60W is a Single-Port. Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.It is designed specifically to meet the demand for growing higher power required network equipment such as:- Lighting- All-in-one touch PC- Remote digital signage display- Other network devices that need higher power to work normallyThe IPOE-171-60W delivers the Ethernet digital data with DC power over the twisted-pair cables as a 60-watt Power over Ethernet Injector. and the connected ultra Power over Ethernet splitter. the IPOE-173S. will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters. 60 watts of Power over 4-pair UTPInstead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1. 2. 3 and 6) or mid-span (Pins 4. 5. 7 and 8). the IPOE-171-60W provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. Intelligent LED Indicator for Power Input and Real-time PoE UsageThe IPOE-171-60W helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. “Power Input” allows user to know the status of power input. “PoE Power Usage” displayed on the panel of the IPOE-171-60W has three LED indicators of different power usages. Via the power usage LED. the IPOE-171-60W enables the administrator to monitor the status of the power usage of the connected PDs in real time.High compatibility and Compact Size DesignIt is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting. making it easy for industrial users to own it. Besides. the IPOE-171-60W comes in compact housing. and provides
