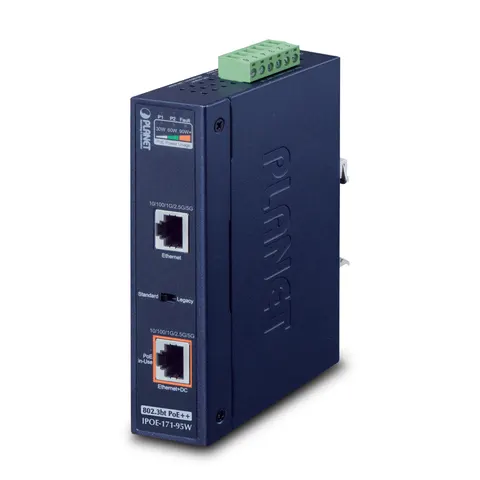

PLANET IPOE-171-95W PoE adapter

Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution PLANET IPOE-171-95W is a Single-Port. Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.It is designed specifically to meet the demand for growing higher power required network equipment such as:- Lighting- All-in-one touch PC- Remote digital signage display- Other network devices that need higher power to work normallyThe IPOE-171-95W delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector. and the connected ultra Power over Ethernet splitter. the IPOE-173S. will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters. Convenient and Reliable Power System To facilitate the 802.3bt PoE++ usage with commonly used 12~48V DC power input for transportation and industrial-level applications. the IPOE-171-95W adopts 12~48V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IPOE-171-95W provides an integrated power solution with a wide range of voltages (12~48V DC) for worldwide operability. It also provides dual-redundant. reversible polarity 12~48V DC power supply inputs for high availability applications.95 watts of Power over 4-pair UTPInstead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1. 2. 3 and 6) or mid-span (Pins 4. 5. 7 and 8). the IPOE-171-95W provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. Intelligent LED Indicator for Power Input and Real-time PoE UsageThe IPOE-171-95W helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. “Power Input” allow
