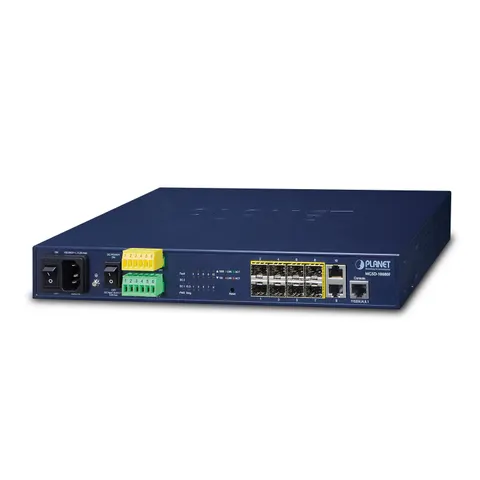

PLANET MGSD-10080F network switch Managed L2+ 1U Blue

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Enterprise. Telecoms and Campuses PLANET latest Metro series Ethernet switch MGSD-10080F is equipped with advanced management functions and provides 8 100/1000Mbps dual speed SFP Fiber ports. and 2 10/100/1000Mbps TP ports delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 20Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error. which greatly simplify the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. The MGSD-10080F is specially designed for service provider to deliver profitable long distance Ethernet network. The MGSD-10080F adopts “Front Access” design. making the wiring and maintenance of the MGSD-10080F placed in a cabinet very easy for technicians. Flexible and Extendable Solution The 8 mini-GBIC slots built in the MGSD-10080F support dual-speed. 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGSD-10080F supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator. such as optical output power. optical input power. temperature. laser bias current. and transceiver supply voltage. AC and DC Redundant Power to Ensure Continuous Operation To enhance the operation reliability and flexibility. the MGSD-10080F is equipped with one 100 ~ 240V AC power supply unit and two additional 36 ~ 72V DC power input connectors for redundant power supply installation. The Redundant Power Systems are specifically designed to handle the demands of high tech facilities requiring the highest power integrity. Furthermore. with the 36~ 72V DC power supply implemented. t
