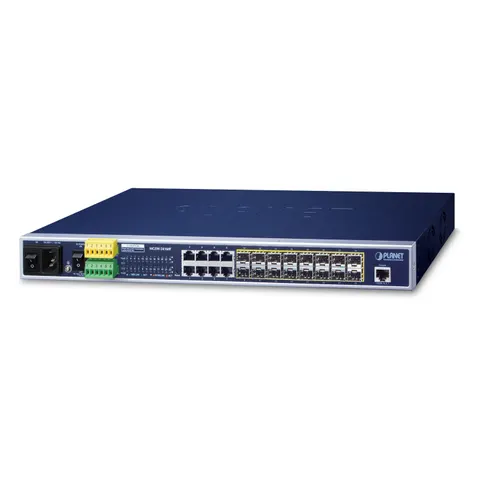

PLANET MGSW-24160F network switch Managed L2+ Gigabit Ethernet

Multiple SFP Fiber Port Switch for All Long-Reach Network CustomersPLANET MGSW-24160F is ideal for all long-reach network customers. such as enterprises. telecoms. campuses and service providers as it comes with advanced management functions. and 16 100/1000Mbps dual speed SFP Fiber ports and 8 10/100/1000Mbps TP ports with a rugged case. It is capable of providing non-blocking switch fabric and wire-speed throughput of as high as 48 Gbps in the temperature range from 0 to 60 degrees C without any packet loss and CRC error. Thus. it is certainly a must for those who want to further upgrade their existing network infrastructures to a level where bandwidth demands can be met. Furthermore. it adopts “Front Access” design for easy wiring and maintenance of the MGSW-24160F when placed in the cabinet.Flexibility and Extension SolutionThe 16 mini-GBIC slots built in the MGSW-24160F support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. The administrator can flexibly choose the suitable SFP transceiver when considering transmission distance and speed. The distance can be extended from 550 meters to 2km for multi-mode fiber. and up to 10/20/30/40/50/70/120 kilometers for single-mode fiber or WDM fiber. They are well suited for applications within the enterprise data centers and distributions.Intelligent SFP Diagnosis MechanismThe MGSW-24160F supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP. such as optical output power. optical input power. temperature. laser bias current. and transceiver supply voltage.AC and DC Redundant Power to Ensure Continuous OperationThe MGSW-24160F is equipped with one 100~240V AC power supply unit and one additional 36~60V DC power supply unit for redundant power supply installation. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit.
