PLANET Single-Port 10Gbps 802.3bt

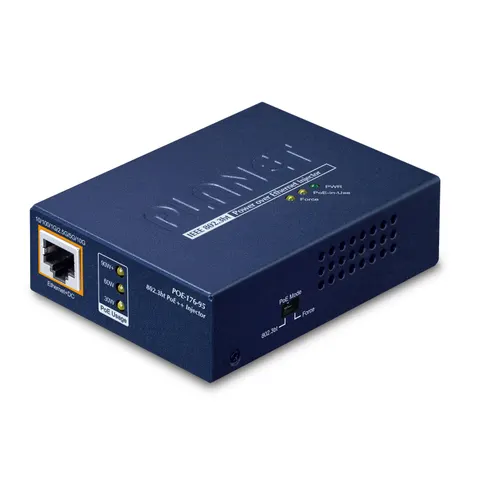

Advanced Multi-Gigabit and 802.3bt PoE++ Network SolutionPLANET POE-176-95 is a Single-Port. 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.The POE-176-95 adopting the IEEE 802.3bt standard. instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1. 2. 3 and 6) or mid-span (Pins 4. 5. 7 and 8). provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. In the new 4-pair system. it can offer more PoE applications. such as:- PoE lighting- PoE PTZ speed dome camera- Any network device that needs higher PoE power to work normally- Thin-client- AIO (All-in-One) touch PC- Remote digital signage displayThe POE-176-95 delivers the Ethernet digital data with DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector. and the connected ultra Power over Ethernet splitter. the POE-173S. will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters. Intelligent LED Indicator for PoE Mode and Real-time PoE UsageThe POE-176-95. when switched to the Force mode. provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. The Force LED will turn on when the Force mode is enabled. it can power on the PD with a maximum of 60 watts.Moreover. the POE-176-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-176-95 has three LED indicators of different power usages. Via the power usage LED. the POE-176-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.95 Watts of Power over 4-pair UTPIn the new 4-pair system with IEEE 802.3
