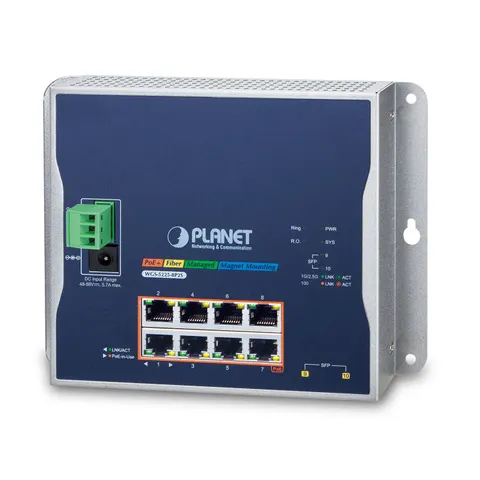

PLANET WGS-5225-8P2S network switch Managed L2+/L4 Gigabit Ethernet

Wall-mount PoE Managed Switch with Advanced L2+/L4 Switching and Security PLANET WGS-5225-8P2S is an Industrial Wall-mount PoE Managed Switch featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 36-watt PoE and two additional 1000BASE-X SFP ports. With a total power budget of up to 240 watts for different kinds of PoE applications. and featuring networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing. the WGS-5225-8P2S is an ideal solution to meet the demand for the following network applications: - Building/Home automation network - Internet of things (IoT) - IP surveillance Redundant Ring. Fast Recovery for Critical Network Applications The WGS-5225-8P2S supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network. the recovery time of data link can be as fast as 20ms. Convenient and Smart ONVIF Devices with Detection Feature PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8P2S’s GUI. you just need one click to search and show all of the ONVIF devices via network application. In addition. you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover. you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI. Built-in Unique PoE
