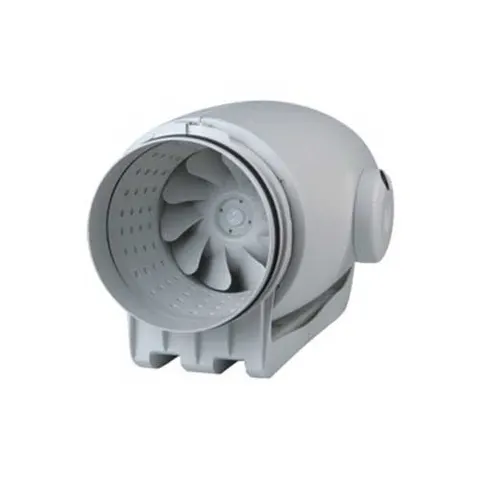

S&P TD-250/100 Silent Inline Mixed Flow Duct Fan with Timer Single Phase - 100mm

The S&P TD-250/100 Silent T is a low-profile sound-insulated in-line mixed-flow duct fan from the MIXVENT-TD range, moving up to 250 m³/h through 100 mm duct with run-on timer (1–30 min). Its low profile makes it ideal where installation space is limited, such as false ceilings, and it can be mounted at any point along the duct. Airflow up to 250 m³/h (free air); 100 mm connection External-rotor AC motor (230 V, 1~, 50 Hz); not speed-controllable (run-on timer) Sound-insulated plastic; IP44; Class B Sound pressure 25 dB(A) at 3 m; greased-for-life ball bearings; thermal overload protection Sound-absorbent insulation and rubber inlet/outlet gaskets; connection box rotates 360° Motor and impeller assembly fits/removes without dismantling the adjacent ducting Adjustable run-on timer (1–30 minutes) Suitable for Residential and commercial extract or supply; bathrooms, toilets, offices and washrooms Quiet installations, e.g. offices and ceiling voids Installation Fits at any point along the duct in any position; the unique support bracket allows the motor/impeller assembly to be fitted or removed without dismantling the ducting. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand S&P Model TD-250/100 Silent T Type Silent in-line mixed-flow duct fan (MIXVENT-TD) Duct connection 100 mm Airflow (max, free air) 250 m³/h Motor External-rotor AC (230 V, 1~, 50 Hz); run-on timer, not speed-controllable Power (max) 28 W Sound pressure @ 3 m 25 dB(A) Casing Sound-insulated plastic; IP44; Class B Max ambient -20/+40°C Manuals & GuidesS&P TD-250/100 Silent T Datasheet
