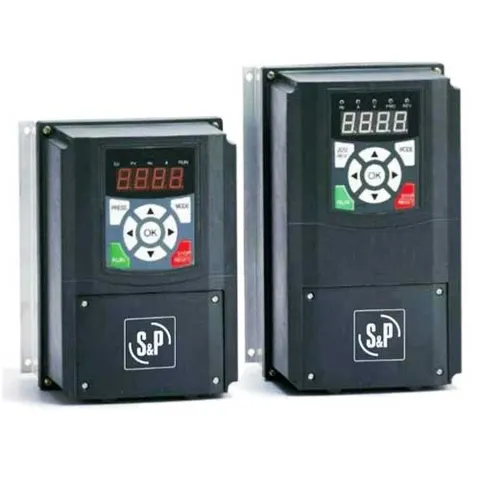

S&P VFD-M 10Amp Variable Frequency Digital Inverter

The S&P VFD-M 10Amp is a single phase variable frequency digital inverter that gives smooth speed control of three phase fans from a standard 230V supply. It draws a maximum current of 10A, drives motors up to 2.2KW, runs on 230V 50/60Hz and carries an IP54 rating for protection against dust and water splashing.The inverter takes a single phase 230V input and delivers a three phase output, so a three phase fan can run from single phase mains without a dedicated three phase feed. It ramps the fan up and down electronically for quieter, more energy efficient running. 10 Amp maximum current with 2.2KW motor power Single phase 230V 50/60Hz supply, three phase output IP54 rated for dust and splash protection Suitable for Running three phase fans from a single phase 230V supply Applications needing variable speed control of ventilation fans Specifications Brand S&P Model VFD-M 10Amp Type Variable frequency inverter Supply Single phase 230V 50/60Hz Output Three phase Max Current 10A Motor Power 2.2KW Enclosure IP54 Warranty 1 Year Manufacturer Manuals & GuidesS&P VFD-M Data Sheet
