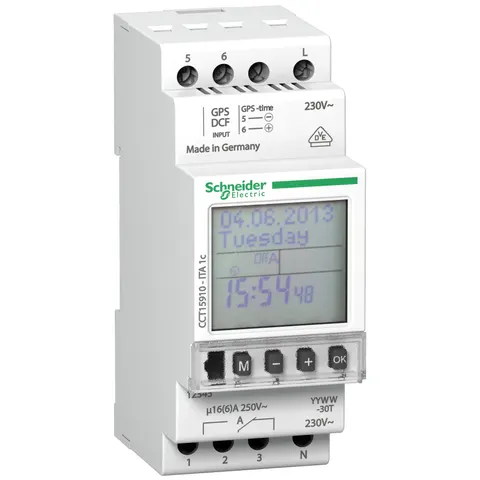

Schneider Electric Programmable Year Time Switch 1 Channel - CCT15910

The Schneider Electric digital switching clock for panel building, DIN-rail, features 1 channel, a power supply voltage of 230V, an AC power supply voltage type, and a power supply frequency of 50-60Hz. It comes with a 10-year battery life and provides on-screen text guidance. The clock supports external programming, a 60-minute program, and a 24-hours program. This annual programmable ITA 1c-timer allows weekly or yearly time programming over one channel, with the ability to duplicate or store user-created programs using a memory key and programming kit. It operates with a nominal voltage of 230 V AC, 50/60 Hz, consuming 1.4-1.9 W (depending on the switching status). It's operational from -30°C up to +55°C and has a width of 4 modules (9mm). With an IP20 protection level, the output contact is rated at 250V: 16 A cos Phi 1. 6 A cos Phi 0.6. The clock features an LCD display with backlighting, offers 300 switching operations, with a minimum switching time of 1 second. The switching
