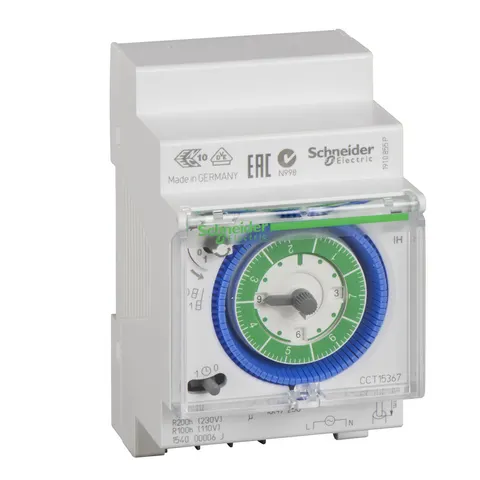

Schneider Electric Time Switch 7 Days With Power Reserve - CCT15367

The Schneider Electric M is an analog switch clock for panel construction with dimensions of 54x66x90mm and a mounting type of DIN-rail. It operates on a power supply voltage of 110 - 230V and has a switching contact configuration. With a single channel, it has an autonomy lasting 150 hours and a protection degree of IP20. Its width measures in 3 module units, and the supply voltage frequency ranges from 50 - 60Hz. The Acti 9 Mechanical Timer Switch model IH 7j features user-programmable automatic switching according to a repeating weekly cycle. It operates at a nominal voltage of 110-230 V AC, with a fluctuation range of +10%, -15%, and 50/60 Hz and consumes 2.5 VA. With a protection grade of IP20B, it can operate from -20°C to +55°C and supports up to 42 on/off switch operations.
