Systemair AR 710DV Sileo Cased Axial Fan Three Phase - 710

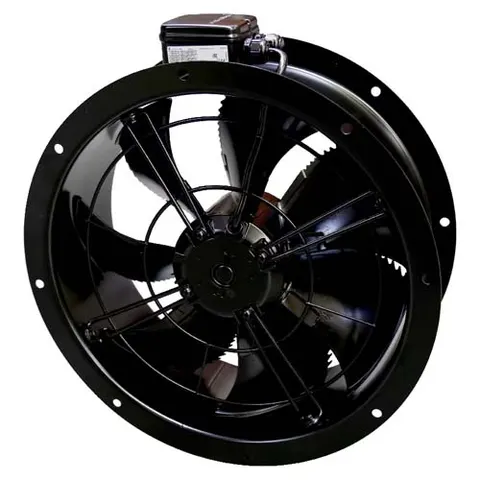

The Systemair AR 710DV is a 710mm Sileo cased axial fan delivering up to 22576 m³/h of low pressure airflow. It uses a noise optimised aluminium axial impeller in a galvanised steel casing with Eurovent 1/2 flanges, finished in black powder coat with an inlet protection guard.The three phase 4 pole AC external rotor motor draws 2,600 W and carries integrated thermal contacts for connection to a motor protection device. Rated to IP54 with air temperatures up to 60°C, it installs in any position and is speed controllable by star delta switching or a transformer controller for high volume commercial and industrial ventilation. 3 Phase AC motor Up to 22576 m³/h Speed controllable Specifications Brand Systemair Model AR 710DV Sileo Type Cased axial fan Diameter 710mm Max airflow 22576 m³/h Phase 3 Phase Motor AC Power consumption 2,600 W Max temp / IP 60°C / IP54 Speed control Yes Warranty 1 Year Manufacturer
