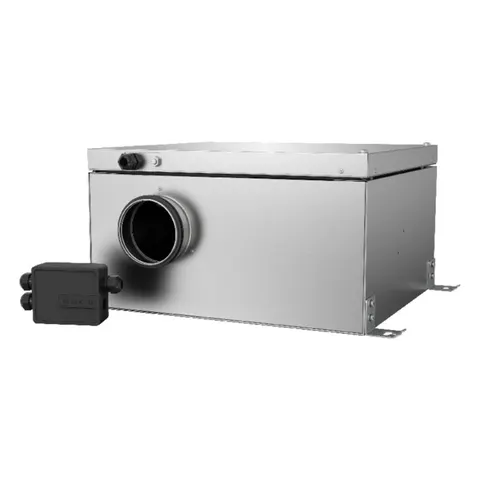

Systemair KVK Silent 100 EC Fan - 100mm

The Systemair KVK Silent 100 EC is a fully-insulated, low-noise box fan with circular duct connections, delivering up to 311 m³/h through 100 mm duct. Both lid and casing are lined with high-density mineral wool for excellent acoustic and thermal insulation. Very low noise – fully insulated lid and casing High-density mineral wool acoustic/thermal insulation Energy-efficient external-rotor EC motor Pre-wired 0-10V potentiometer, speed control 0-100% AluZinc casing, corrosion class C4 (indoor/outdoor) Integrated motor protection and soft-start Suitable for Noise-sensitive commercial and domestic ventilation Supply or extract duct runs requiring quiet operation InstallationThe fan can be installed in any position, indoors or outdoors. The FK mounting clamp (accessory) eases installation and prevents vibration transfer to the duct. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand Systemair Model KVK Silent 100 EC Duct connection 100 mm circular Airflow (max) 311 m³/h Motor External-rotor EC; 0-10V potentiometer Casing AluZinc C4; fully insulated, IP54 motor Max air temperature +60°C Warranty 1 Year Manufacturer
