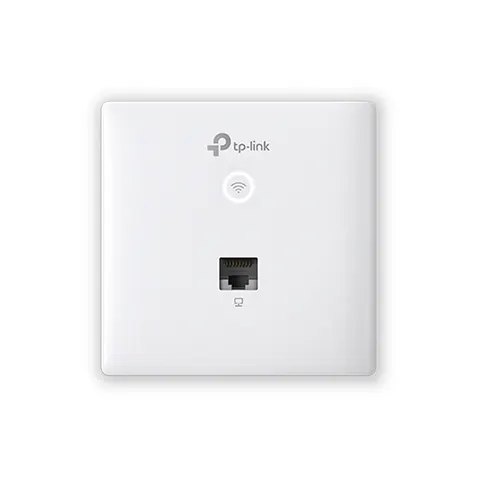

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
- Prices from £93.96 to £133.22 at 2 shops
- No. 80 of 1,180 in Networking & Wi-Fi
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink)
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories
Variant: Omada AC1200 Wall-Plate
-
Omada AC1200 Wall-Plate £93.96 -
Omada AC1200 Wall Plate – 088972 £88.74 -
Omada AC1200 Wall Plate – EAP235WALL £65.48 -
AC1350 Ceiling Mount £75.43
Up to £39.26 cheaper than the most expensive shop
It has not been cheaper in the last 90 days. On average it cost £118.12.
2 offers compared
Sorted by total price including delivery-
£93.96Go to shop: Quzo UK -
£133.22Go to shop: PCHUB.UK
Prices include VAT, last checked 17 October at 07:41. Prices may have changed since. Advertising: some shops pay Pricuro a commission when you buy through a link. Offers are ordered by total price only; used and refurbished offers come last.
Price history
- Now
- £93.96
- Lowest
- £93.96
- Average
- £118.12
- Highest
- £133.22
Product details
| Brand | TP-Link |
|---|---|
| Category | Networking & Wi-Fi |
| Barcode (EAN) | 6935364089481 |
| Manufacturer part number | EAP230WALL |
| Shops compared | 2 |
| Price range | £93.96 – £133.22 |
| Total | Lowest total price including delivery: £93.96 |
| On Pricuro since | 3 October 2026 |
Features
22
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
Security
5
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
|---|---|
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
Management features
2
| Web-based management | Yes |
|---|---|
| Syslog | Yes |
Ports & interfaces
2
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| WAN connection | Ethernet (RJ-45) |
Power
3
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
Design
4
| Placement | Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Operation |
Antenna
4
| Antenna type | Internal |
|---|---|
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.6 dBi |
Performance
1
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
|---|
Certificates
1
| Compliance certificates | CE, RoHS |
|---|
Weight & dimensions
3
| Width | 86.8 mm |
|---|---|
| Depth | 86.8 mm |
| Height | 30.2 mm |
Packaging data
4
| Package width | 118 mm |
|---|---|
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
Packaging content
3
| Quantity per pack | 2 pc(s) |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
4
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
1
| Sustainability compliance | Yes |
|---|
Logistics data
1
| Harmonized System (HS) code | 85176990 |
|---|
Manufacturer data: Open Icecat
Product description
Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various…
Read more
Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
